Individual hose record
KLA10210 Hose Repair Specifications
Excavator · Case · CX160C · Swivel Joint
Finished length1,800 mm
Locate this hose

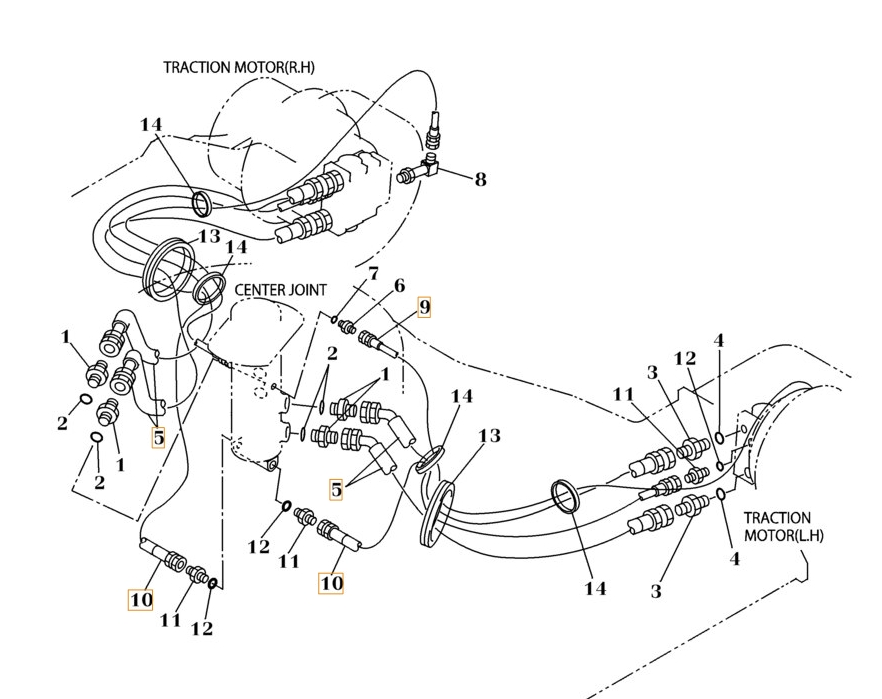

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number KLA10210 before removing the hose.
Repair specifications
- Part number
- KLA10210
- Diagram pipe number
- 5
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN19;4SP-12;35MPa
- Finished length
- 1,800 mm
- Working pressure
- 35 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
- Quantity
- 4
Same system
Related Hoses
Diagram Pipe No. 10
KHJ1144
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 1,800 mm
- Specification
- DN13;1SN-08;16MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
