Individual hose record

4218415 Hose Repair Specifications

Excavator · Hitachi · EX150 · Attachments

Finished length2,300 mm

Locate this hose

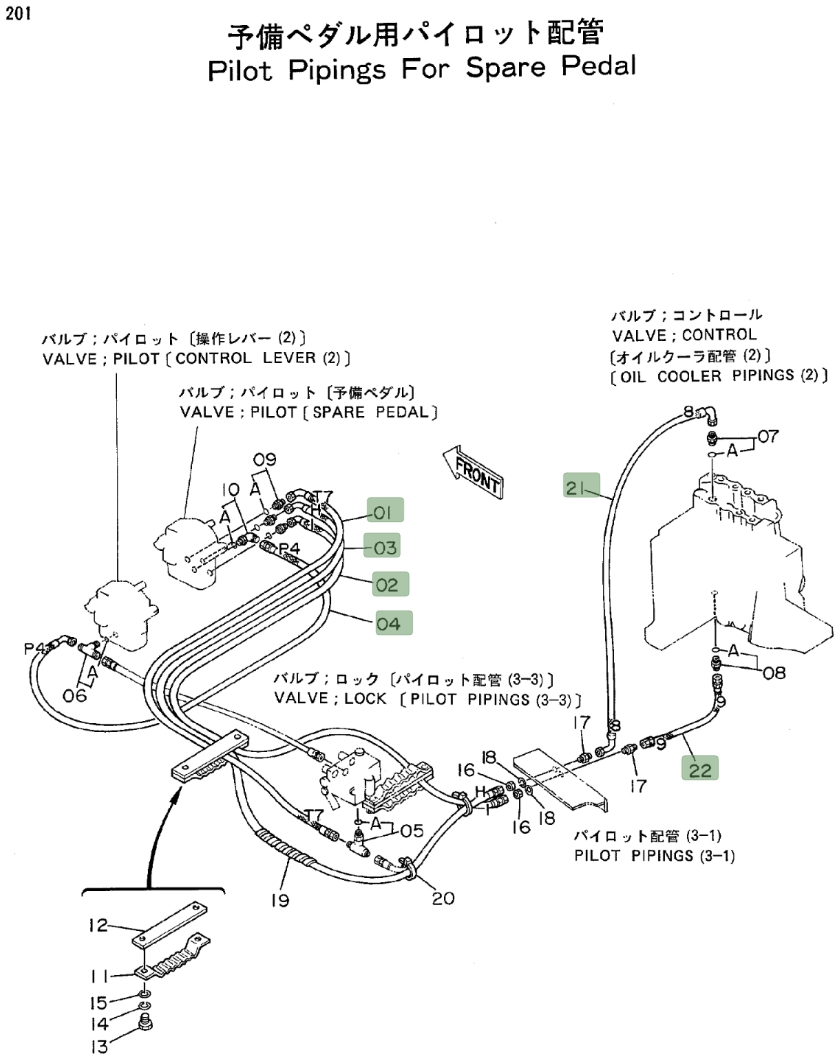

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 4218415 before removing the hose.

Hitachi EX150 installation diagram showing hydraulic hose 4218415 at Pipe No. 2 — Hitachi EX150Part 4218415 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 4218415
Diagram pipe number: 2
Installation route: 备用踏板~接线板(中转接头)
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 2,300 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 4

4210341

Installation route: 备用踏板~行走踏板

Length: 1,200 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 22

4218422

Installation route: 分配阀上~接线板(中转接头)

Length: 900 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 27

4216454

Installation route: 过渡阀块(分配阀)~过渡阀块(电磁阀)

Length: 320 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 3

4218414

Installation route: 备用踏板~接线板(中转接头)

Length: 2,400 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 1

4210340

Installation route: 备用踏板~进回油阀

Length: 1,350 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
