Individual hose record
4226311 Hose Repair Specifications
Excavator · Hitachi · ZX670LC-5B · Grease Lines
Finished length500 mm
Locate this hose

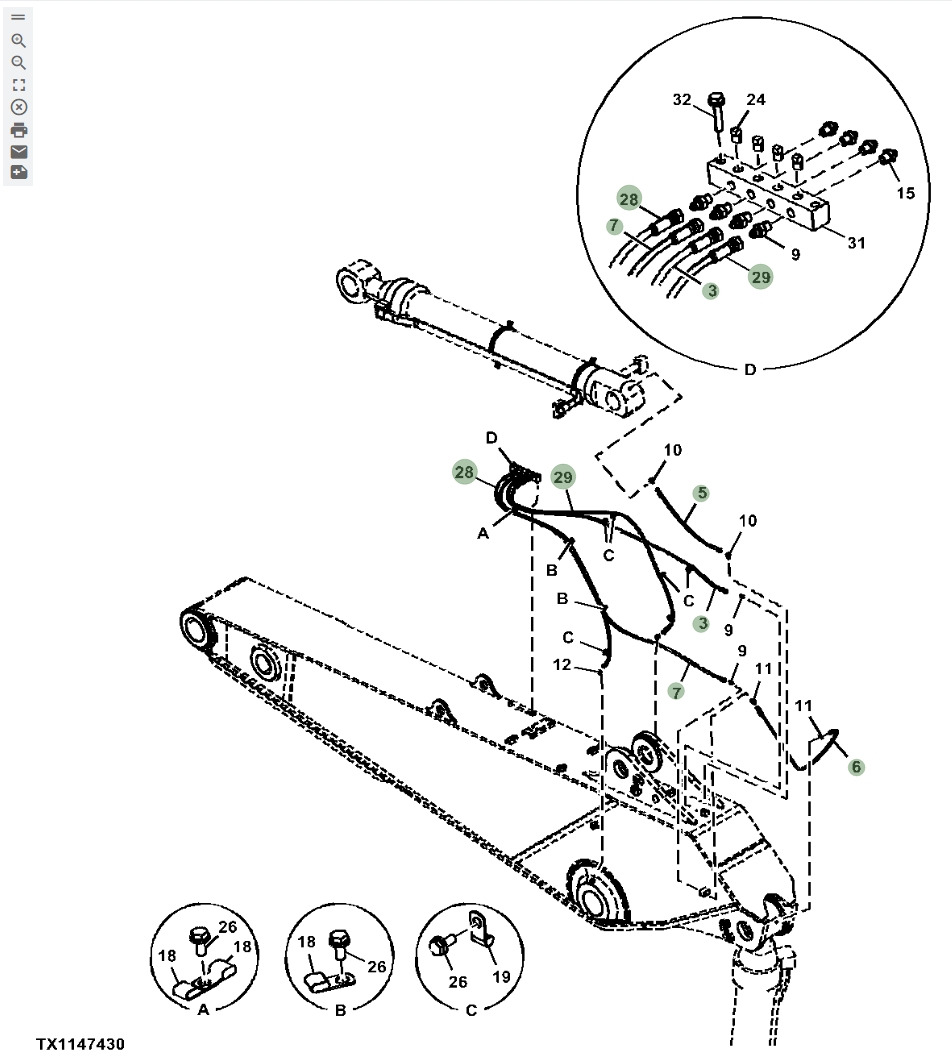

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 4226311 before removing the hose.
Repair specifications
- Part number
- 4226311
- Diagram pipe number
- 5
- Installation route
- 铲斗油缸黄油管
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 500 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
