Individual hose record
4630938 Hose Repair Specifications
Excavator · Hitachi · ZX200F · Control Lever
Finished length380 mm
Locate this hose

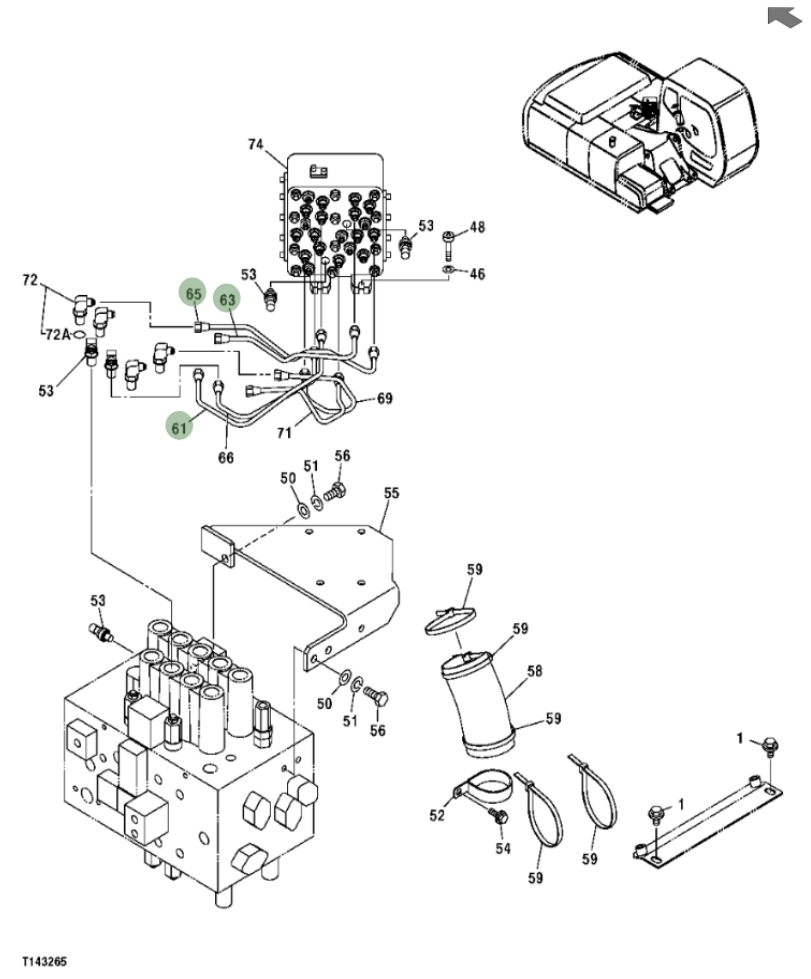

Installation diagram — Pipe No. 61
Locate Pipe No. 61 in the diagram, then confirm part number 4630938 before removing the hose.
Repair specifications
- Part number
- 4630938
- Diagram pipe number
- 61
- Installation route
- 中转接头~分配阀上
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 380 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
