Individual hose record
4453683 Hose Repair Specifications
Excavator · Hitachi · ZX230 · Attachments
Finished length850 mm
Locate this hose

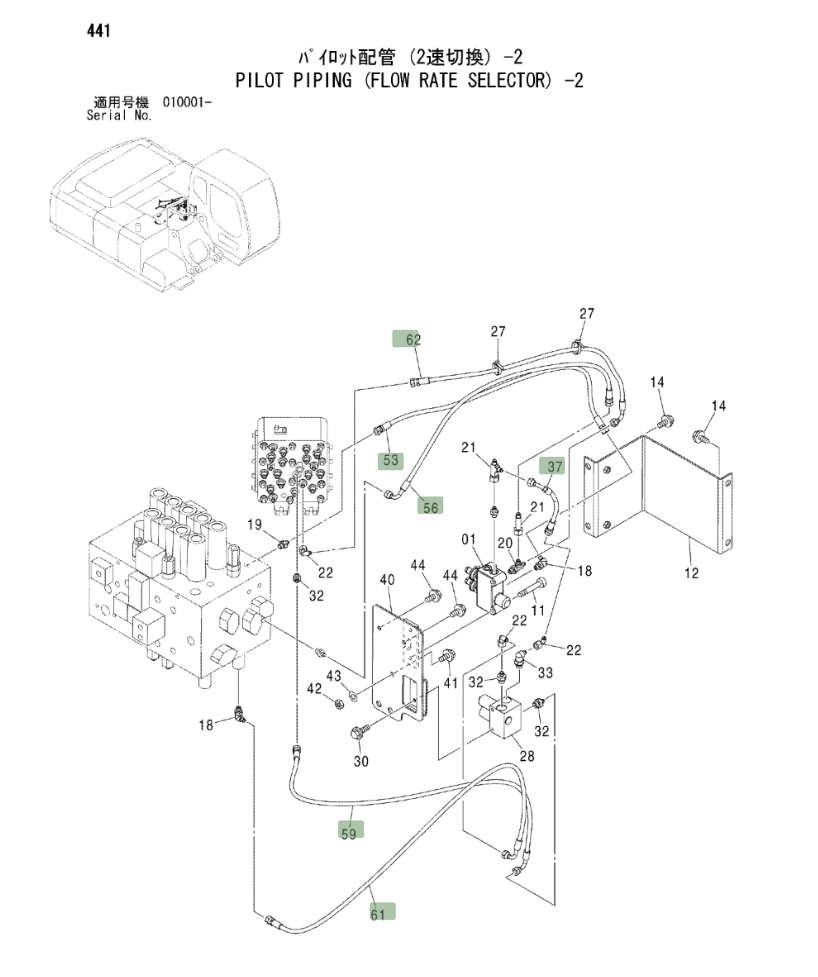

Installation diagram — Pipe No. 53
Locate Pipe No. 53 in the diagram, then confirm part number 4453683 before removing the hose.
Repair specifications
- Part number
- 4453683
- Diagram pipe number
- 53
- Installation route
- 分配阀左~流速切换阀
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 850 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
