Individual hose record
4663174 Hose Repair Specifications
Excavator · Hitachi · ZX180LC-5N · Attachments – Breaker
Finished length1,300 mm
Locate this hose

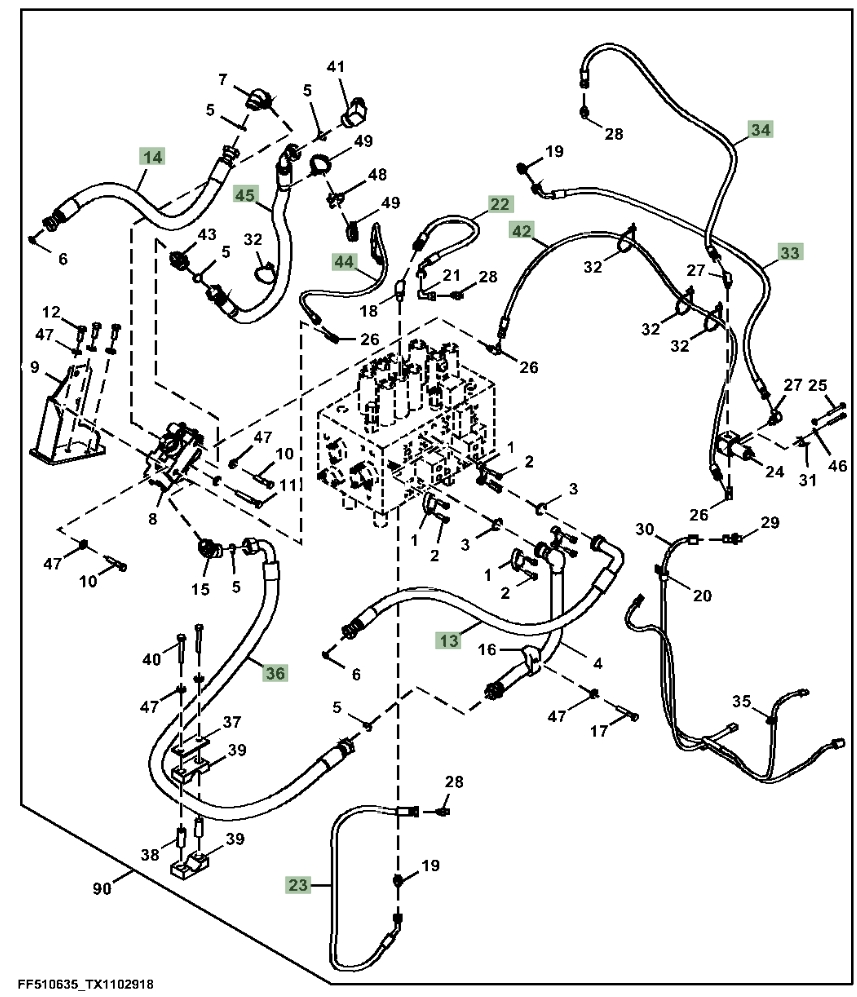

Installation diagram — Pipe No. 13
Locate Pipe No. 13 in the diagram, then confirm part number 4663174 before removing the hose.
Repair specifications
- Part number
- 4663174
- Diagram pipe number
- 13
- Installation route
- 大臂(破碎器)~分配阀左
- Hose specification
- DN19;4SP-12;34.5MPa
- Finished length
- 1,300 mm
- Working pressure
- 34.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° light-series flangeOriginal Chinese: 90°法兰-轻型
- Quantity
- 1
