Individual hose record

4265832 Hose Repair Specifications

Excavator · Hitachi · ZX135US · Attachments – Breaker

Finished length1,300 mm

Locate this hose

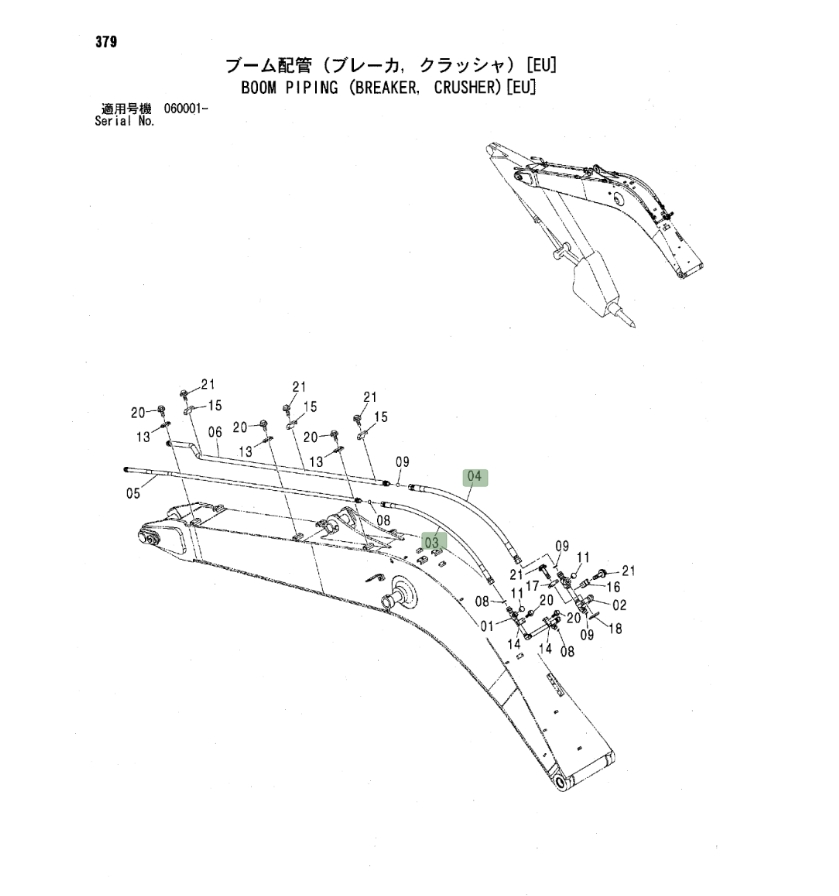

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number 4265832 before removing the hose.

Part number: 4265832
Diagram pipe number: 4
Installation route: 大臂(前段)~大臂(后段)
Hose specification: DN25;4SH-16;34.5Mpa
Finished length: 1,300 mm
Working pressure: 34.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 6A

Installation route: 大臂(破碎器)~过渡阀块(破碎器)

Length: 2,950 mm
Specification: DN19;4SP-12;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45°美制内螺纹平面密封

Diagram Pipe No. 7

Installation route: 大臂(破碎器)~小臂(破碎器)
