Individual hose record

4282456 Hose Repair Specifications

Excavator · Hitachi · EX200LC-3 · Control Valve

Finished length550 mm

Locate this hose

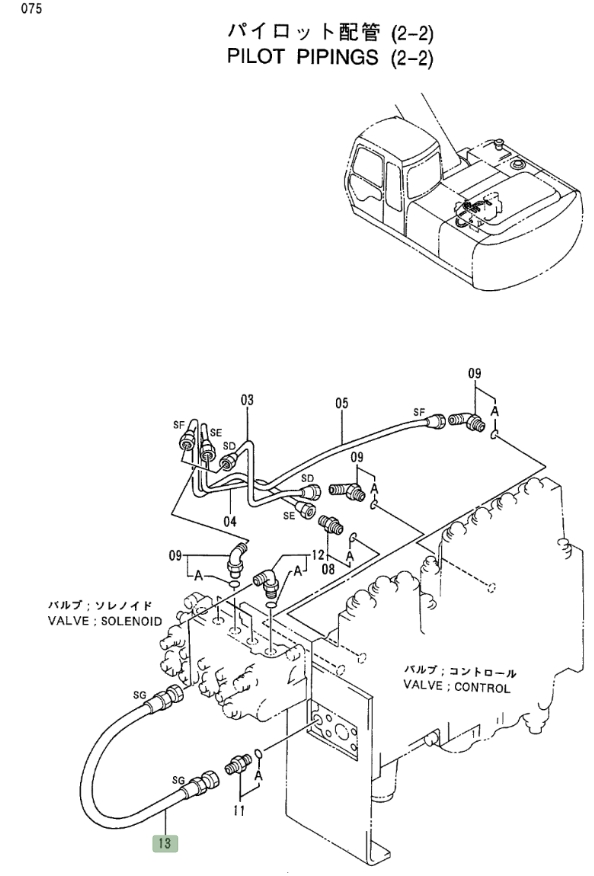

Installation diagram — Pipe No. 13

Locate Pipe No. 13 in the diagram, then confirm part number 4282456 before removing the hose.

Hitachi EX200LC-3 installation diagram showing hydraulic hose 4282456 at Pipe No. 13 — Hitachi EX200LC-3Part 4282456 · Pipe No. 13Open full-size diagram

Repair specifications

Part number: 4282456
Diagram pipe number: 13
Installation route: 分配阀左~电磁阀
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 550 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 30

4287608

Installation route: 分配阀上~过渡阀块(手柄)

Length: 1,550 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 32

4287609

Installation route: 分配阀下~过渡阀块(手柄)

Length: 1,650 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 33

4263616

Installation route: 分配阀下~过渡阀块(手柄)

Length: 1,350 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
