Individual hose record

KHJ1231 Hose Repair Specifications

Excavator · Case · CX210BLR · Hydraulic Pump

Finished length1,800 mm

Locate this hose

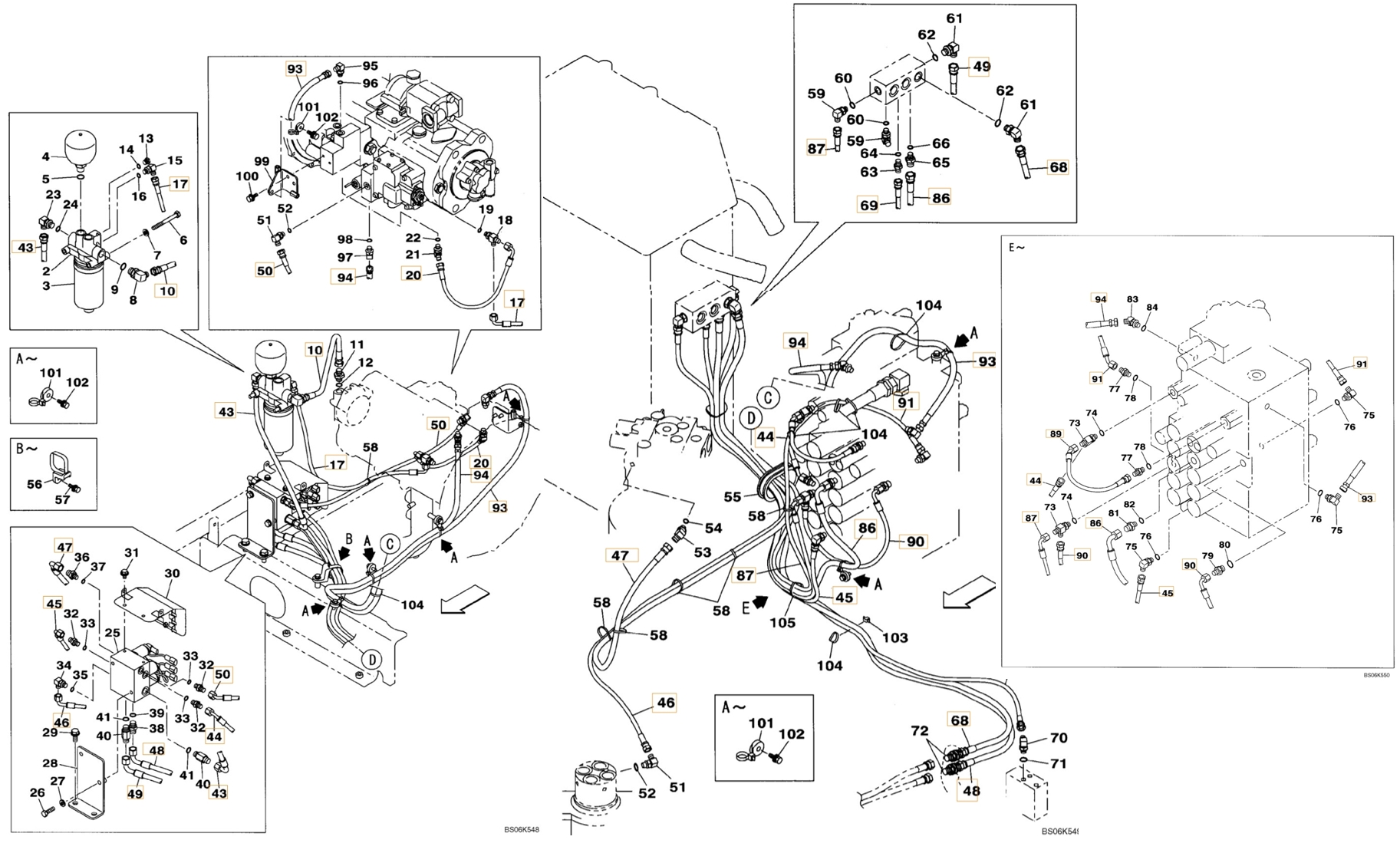

Installation diagram — Pipe No. 93

Locate Pipe No. 93 in the diagram, then confirm part number KHJ1231 before removing the hose.

Case CX210BLR installation diagram showing hydraulic hose KHJ1231 at Pipe No. 93 — **Case CX210BLR · KHJ1231**Part KHJ1231 · Pipe No. 93Open full-size diagram

Repair specifications

Part number: KHJ1231
Diagram pipe number: 93
Installation route: 液压泵左~分配阀左
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,800 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 50

KHJ14910

Installation route: 液压泵左~电磁阀

Length: 800 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 10

KBJ2809

Installation route: 先导泵~吸油铁管

Length: 450 mm
Specification: DN19;2SN-12;21.5MPa
Left fitting: 英制外螺纹平面密封
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 17

KHJ2036

Installation route: 液压泵~先导滤芯

Length: 750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 1

KRJ16320

Installation route: 液压泵~分配阀(进油)

Length: 1,070 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 45° heavy-series flangeOriginal Chinese: 45°法兰-重型

View full repair specifications

Diagram Pipe No. 3

KRJ11180

Installation route: 液压泵~液压油箱

Length: 520 mm
Specification: DN19;2SN-12;21.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 20

KHJ2342

Installation route: 液压泵左~液压泵

Length: 380 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 94

KHJ12370

Installation route: 液压泵右~分配阀右

Length: 2,650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 10

KHJ1306

Installation route: 液压泵~先导滤芯

Length: 550 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications
