Individual hose record

KTA1166 Hose Repair Specifications

Excavator · Case · CX380C LC · Swivel Joint

Finished length2,400 mm

Locate this hose

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number KTA1166 before removing the hose.

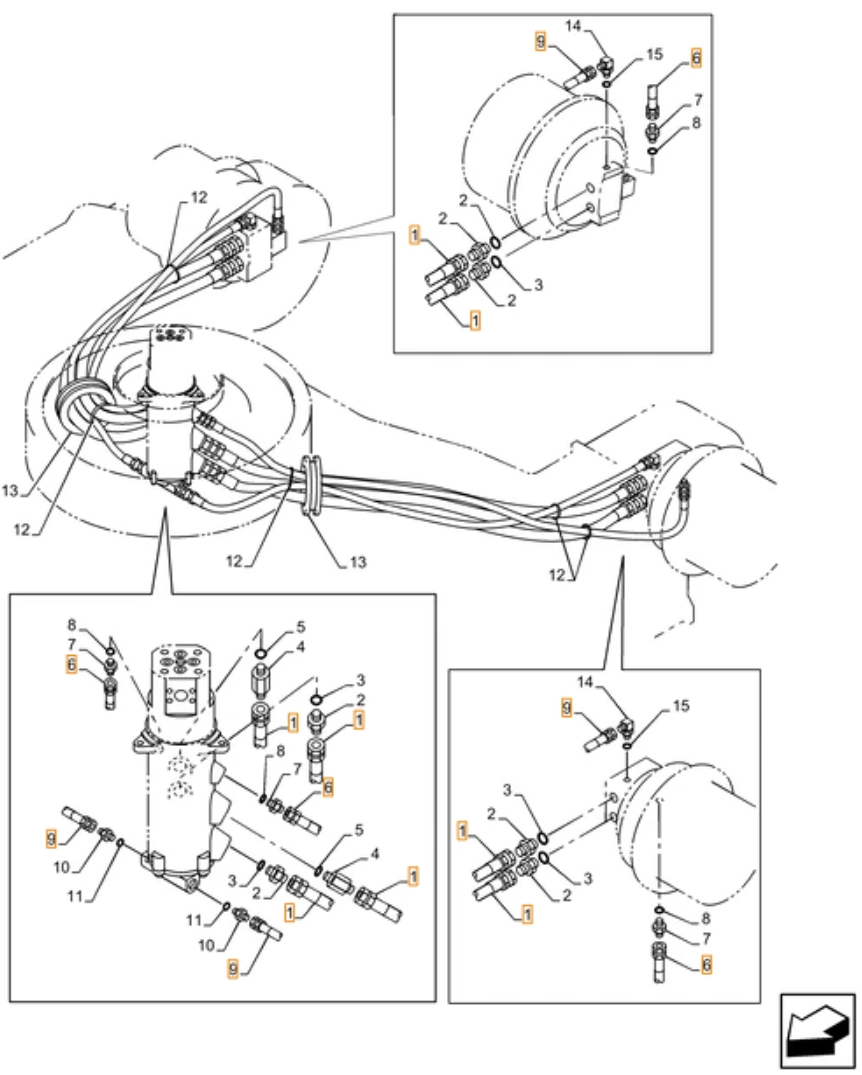

Case CX380C LC installation diagram showing hydraulic hose KTA1166 at Pipe No. 1
Case CX380C LCPart KTA1166 · Pipe No. 1Open full-size diagram

Repair specifications

Part number
KTA1166
Diagram pipe number
1
Installation route
Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification
DN25;4SP-16;32.5MPa
Finished length
2,400 mm
Working pressure
32.5 MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity
4

Same system

Related Hoses

Diagram Pipe No. 1

KSA11830

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length
2,350 mm
Specification
DN25;4SP-16;32.5MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
View full repair specifications

Diagram Pipe No. 14

KSJ2790

Installation route: 回转接头~回转马达(回油)

Length
880 mm
Specification
DN19;2SN-12;21.5MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
View full repair specifications

Diagram Pipe No. 6

157851A1

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length
2,850 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
View full repair specifications

Diagram Pipe No. 9

KRJ6044

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length
2,500 mm
Specification
DN13;1SN-08;16MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
View full repair specifications

Diagram Pipe No. 6

KNJ1071

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length
2,850 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
View full repair specifications
