Individual hose record

KRJ10730 Hose Repair Specifications

Excavator · Case · CX240BLR · Control Valve

Finished length570 mm

Locate this hose

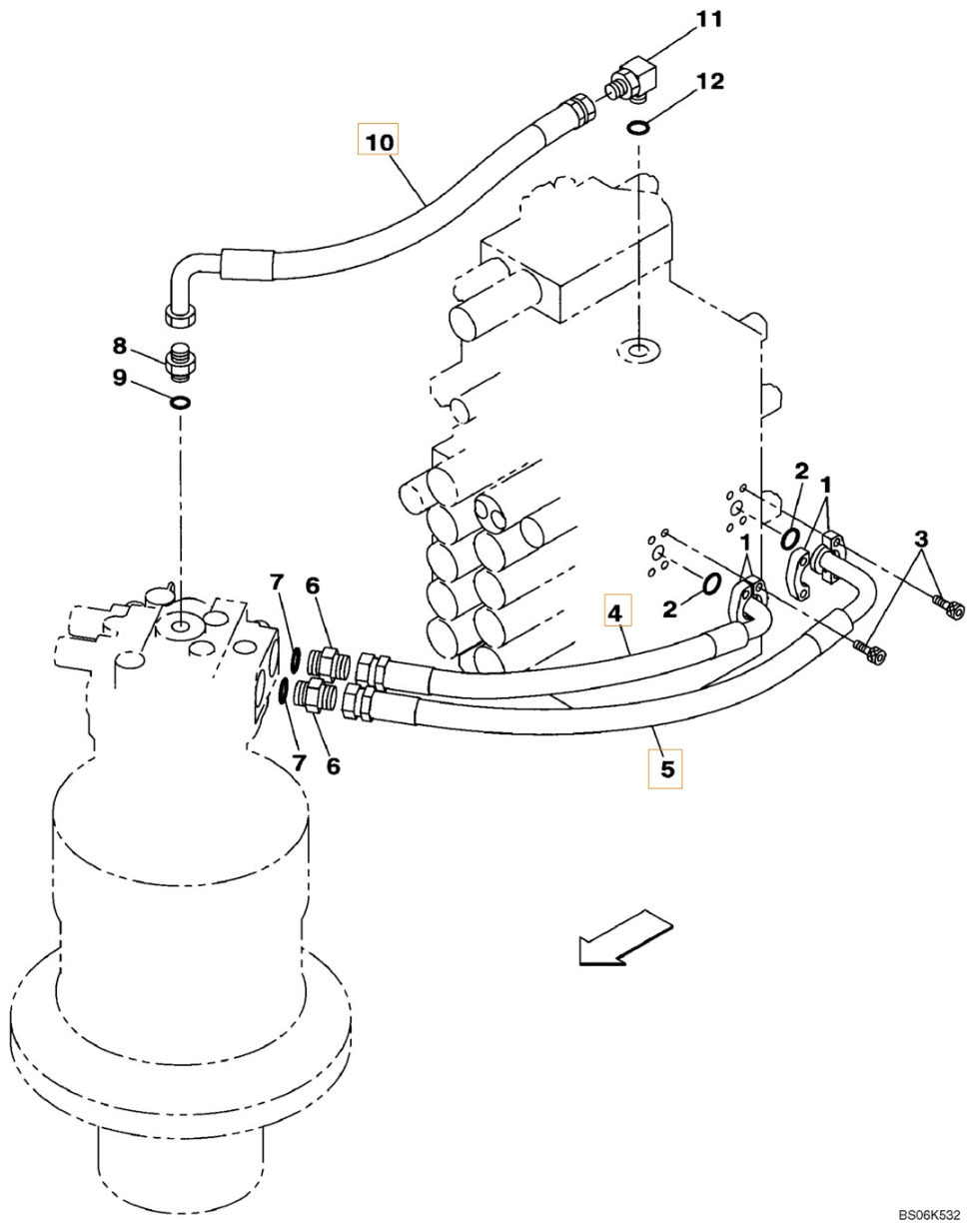

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number KRJ10730 before removing the hose.

Case CX240BLR installation diagram showing hydraulic hose KRJ10730 at Pipe No. 4 — **Case CX240BLR · KRJ10730**Part KRJ10730 · Pipe No. 4Open full-size diagram

Repair specifications

Part number: KRJ10730
Diagram pipe number: 4
Installation route: 分配阀左~回转马达右
Hose specification: DN19;4SP-12;35MPa
Finished length: 570 mm
Working pressure: 35 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° light-series flangeOriginal Chinese: 90°法兰-轻型
Quantity: 1
