4356518 Hose Repair Specifications

Excavator · Hitachi · EX400LC-3C · Attachments – Lock Valve

Finished length850 mm

Locate this hose

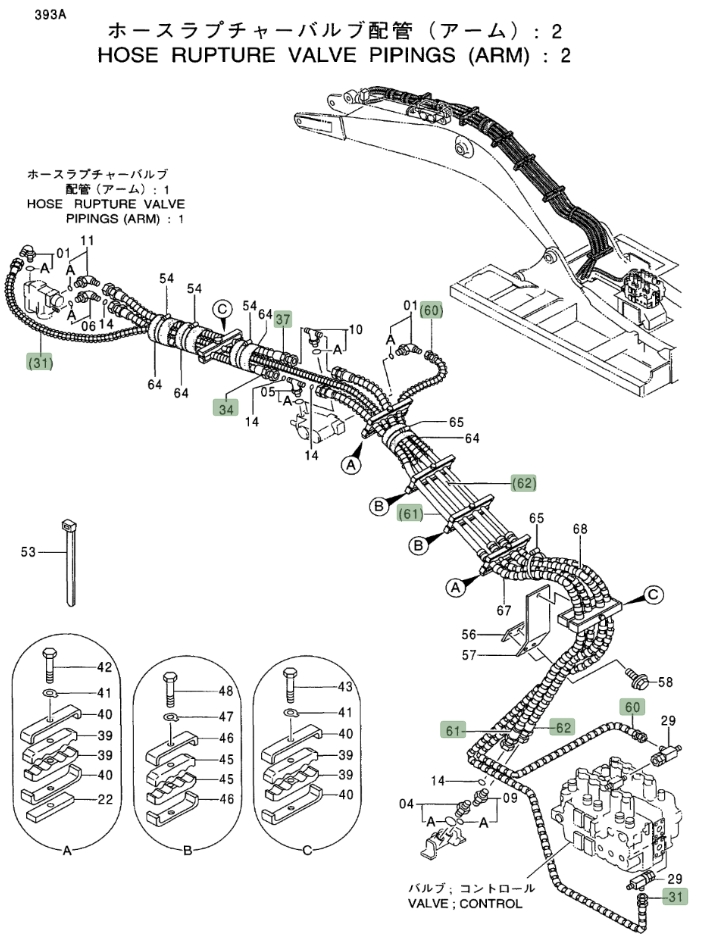

Installation diagram — Pipe No. 34

Locate Pipe No. 34 in the diagram, then confirm part number 4356518 before removing the hose.

Hitachi EX400LC-3C installation diagram showing hydraulic hose 4356518 at Pipe No. 34 — Hitachi EX400LC-3CPart 4356518 · Pipe No. 34Open full-size diagram

Repair specifications

Part number: 4356518
Diagram pipe number: 34
Installation route: 前小臂油缸锁止阀~后小臂油缸锁止阀
Hose specification: DN12;4SP-8;34.5Mpa
Finished length: 850 mm
Working pressure: 34.5 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
