4368893 Hose Repair Specifications

Excavator · Hitachi · EX750-5 · Attachments

Finished length800 mm

Locate this hose

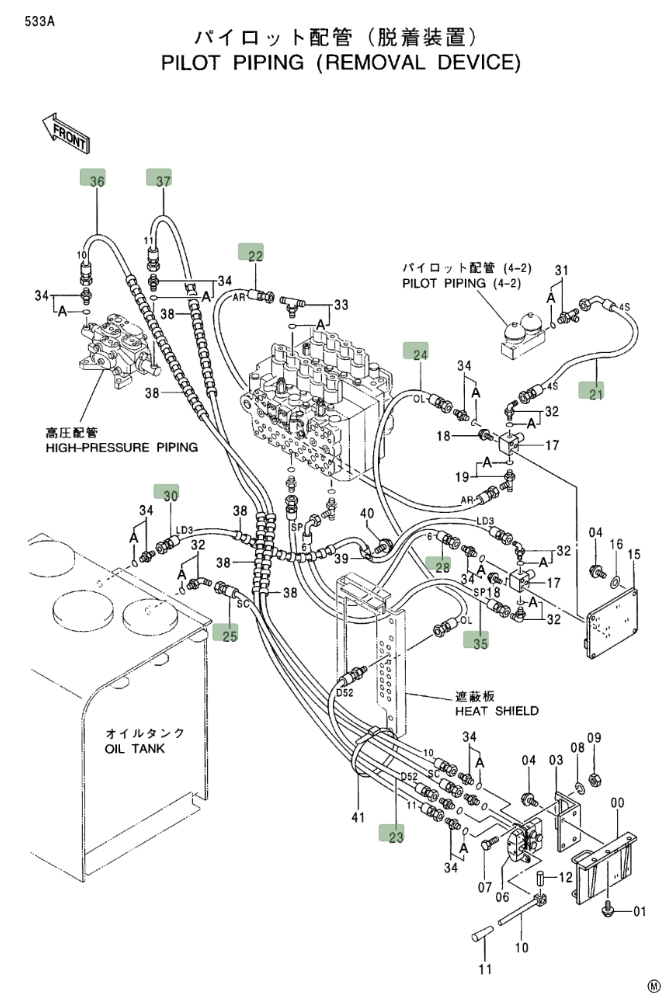

Installation diagram — Pipe No. 35

Locate Pipe No. 35 in the diagram, then confirm part number 4368893 before removing the hose.

Hitachi EX750-5 installation diagram showing hydraulic hose 4368893 at Pipe No. 35 — Hitachi EX750-5 · 4368893Part 4368893 · Pipe No. 35Open full-size diagram

Repair specifications

Part number: 4368893
Diagram pipe number: 35
Installation route: 分配阀下~电磁阀(配重自卸)
Hose specification: DN10;1SN-6;7Mpa
Finished length: 800 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
