Individual hose record

DS2093107 Hose Repair Specifications

Excavator · Doosan · DX80R · Pedal

Finished length3,530 mm

Locate this hose

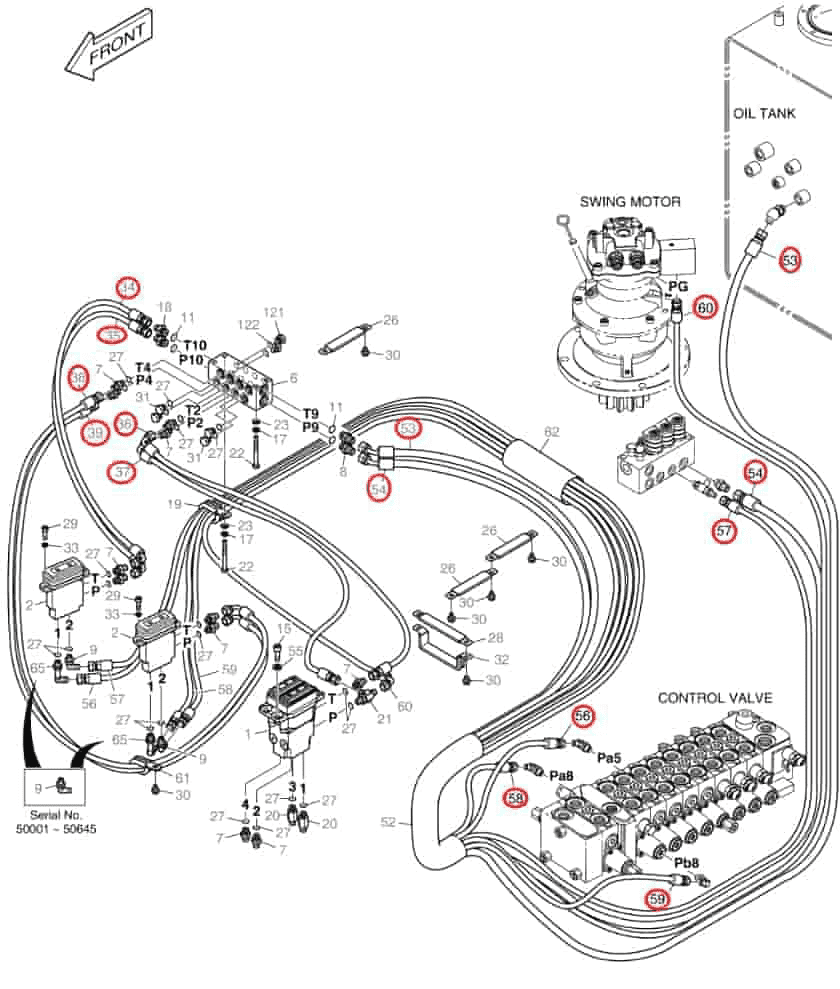

Installation diagram — Pipe No. 60

Locate Pipe No. 60 in the diagram, then confirm part number DS2093107 before removing the hose.

Doosan DX80R installation diagram showing hydraulic hose DS2093107 at Pipe No. 60 — **Doosan DX80R**Part DS2093107 · Pipe No. 60Open full-size diagram

Repair specifications

Part number: DS2093107
Diagram pipe number: 60
Installation route: 行走踏板P口~回转马达PG口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,530 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
