Individual hose record
4443896 Hose Repair Specifications
Excavator · Hitachi · ZX160LC · Control Lever
Finished length2,900 mm
Locate this hose

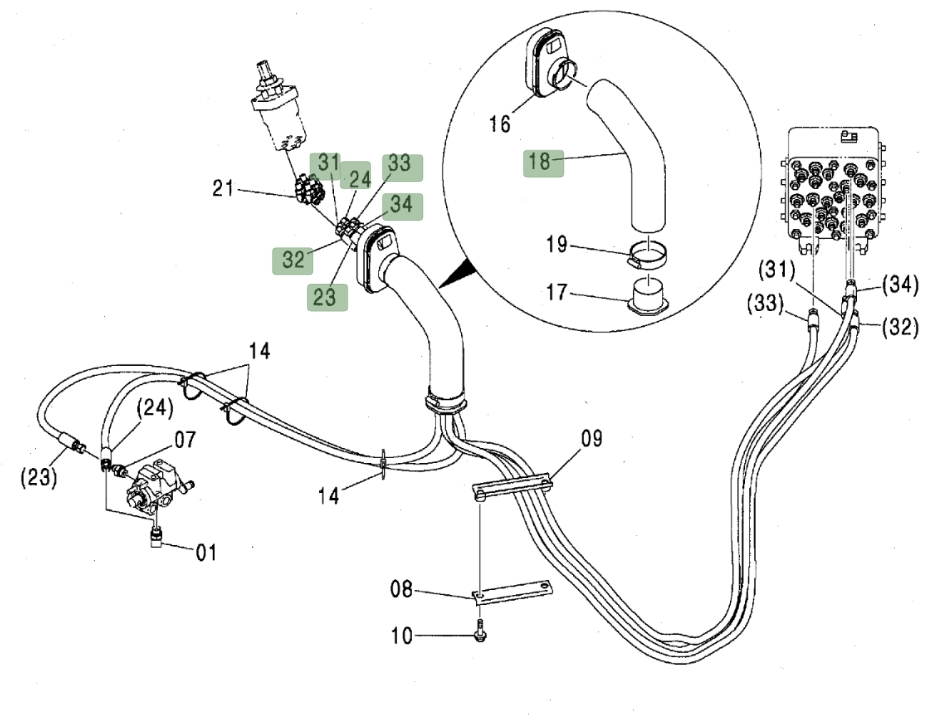

Installation diagram — Pipe No. 34
Locate Pipe No. 34 in the diagram, then confirm part number 4443896 before removing the hose.
Repair specifications
- Part number
- 4443896
- Diagram pipe number
- 34
- Installation route
- 右手柄~中转接头
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 2,900 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
