Individual hose record

4672437 Hose Repair Specifications

Excavator · Hitachi · ZX75US-5N · Swing Motor

Finished length1,500 mm

Locate this hose

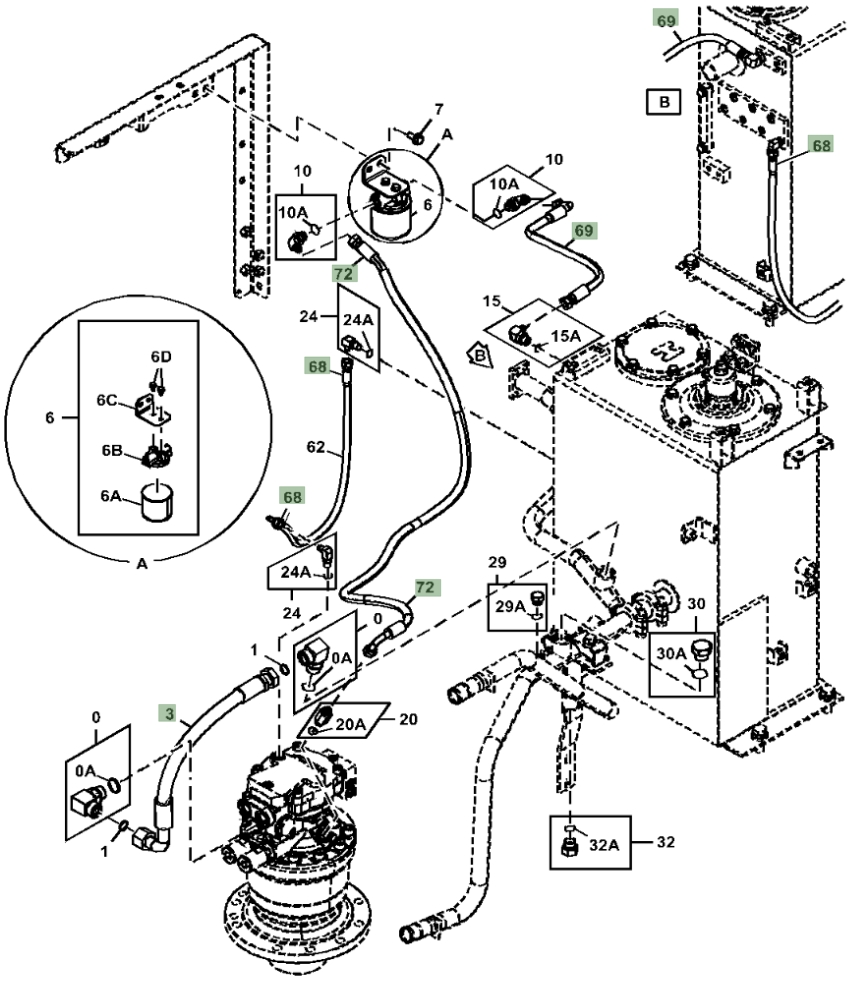

Installation diagram — Pipe No. 72

Locate Pipe No. 72 in the diagram, then confirm part number 4672437 before removing the hose.

Hitachi ZX75US-5N installation diagram showing hydraulic hose 4672437 at Pipe No. 72 — Hitachi ZX75US-5NPart 4672437 · Pipe No. 72Open full-size diagram

Repair specifications

Part number: 4672437
Diagram pipe number: 72
Installation route: 回转马达~先导滤芯(液压油箱)
Hose specification: DN10;1SN-6;18MPa
Finished length: 1,500 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1
