- Length
- 2,850 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Individual hose record
KHJ14900 Hose Repair Specifications
Excavator · Case · CX225SR · Hydraulic Pump
Finished length2,600 mm
Locate this hose

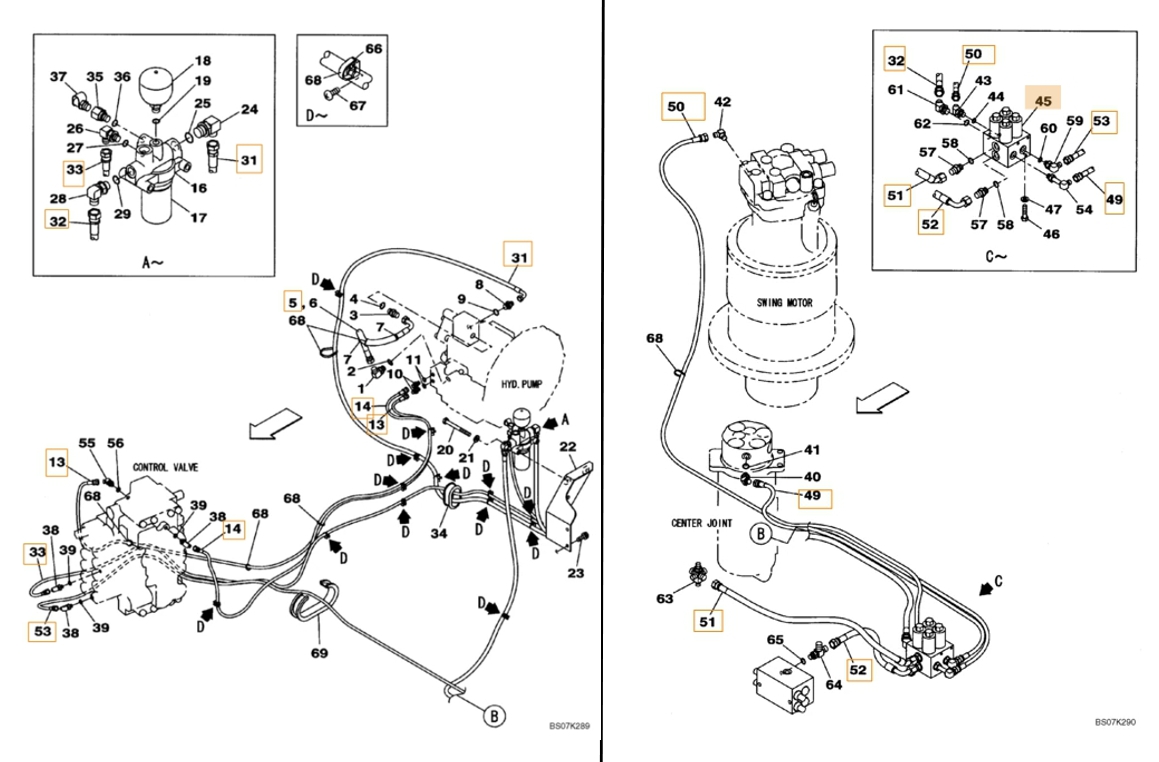

Installation diagram — Pipe No. 31
Locate Pipe No. 31 in the diagram, then confirm part number KHJ14900 before removing the hose.
Repair specifications
- Part number
- KHJ14900
- Diagram pipe number
- 31
- Installation route
- 液压泵~先导滤芯
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 2,600 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
