Individual hose record
4656532 Hose Repair Specifications
Excavator · Hitachi · ZXS370F-3 · Control Lever
Finished length3,150 mm
Locate this hose

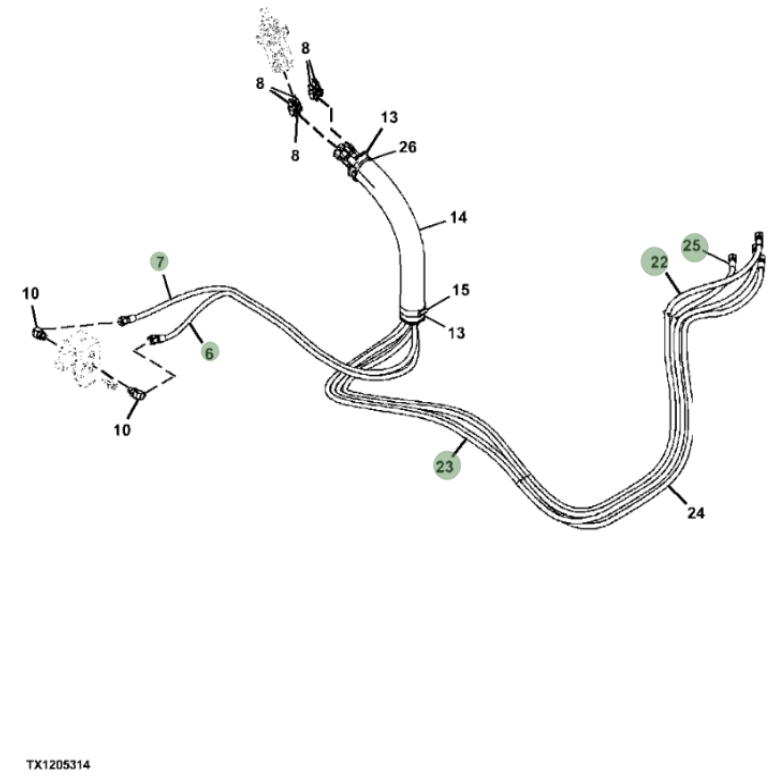

Installation diagram — Pipe No. 24
Locate Pipe No. 24 in the diagram, then confirm part number 4656532 before removing the hose.
Repair specifications
- Part number
- 4656532
- Diagram pipe number
- 24
- Installation route
- 右手柄~中转接头
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 3,150 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
