Individual hose record

4635303 Hose Repair Specifications

Excavator · Hitachi · ZX350LC-3 · Swivel Joint

Finished length2,400 mm

Locate this hose

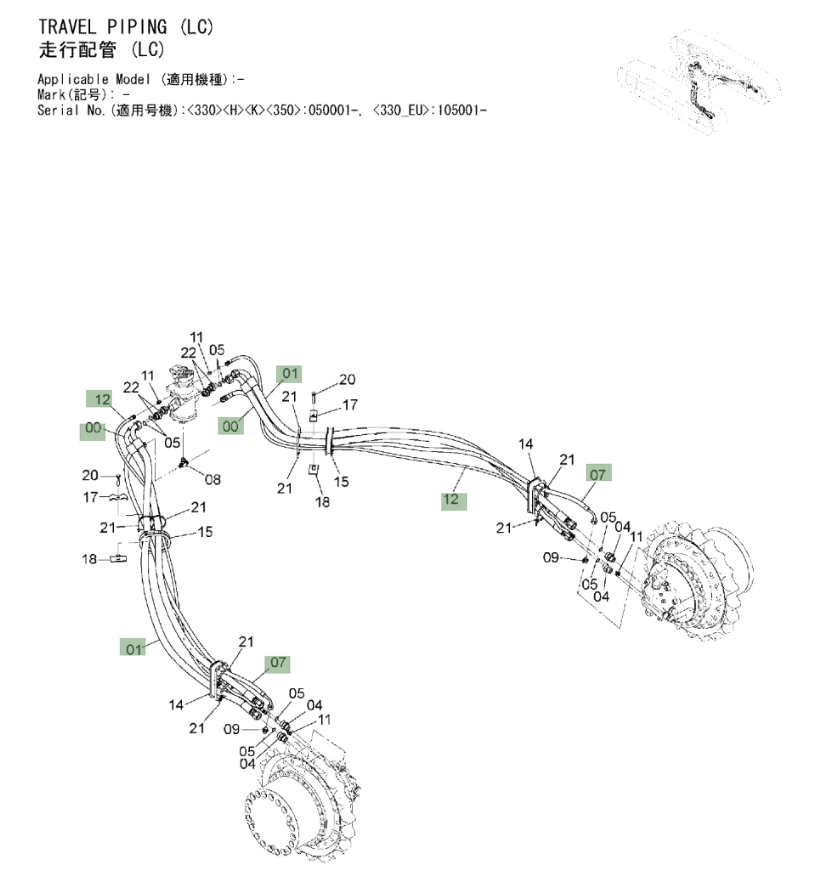

Installation diagram — Pipe No. 0

Locate Pipe No. 0 in the diagram, then confirm part number 4635303 before removing the hose.

Hitachi ZX350LC-3 installation diagram showing hydraulic hose 4635303 at Pipe No. 0 — **Hitachi ZX350LC-3**Part 4635303 · Pipe No. 0Open full-size diagram

Repair specifications

Part number: 4635303
Diagram pipe number: 0
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification: DN25;4SH-16;34.5Mpa
Finished length: 2,400 mm
Working pressure: 34.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity: 2
