Individual hose record

KHJ2085 Hose Repair Specifications

Excavator · Case · CX260C LC · Attachments – Breaker

Finished length600 mm

Locate this hose

Installation diagram — Pipe No. F65

Locate Pipe No. F65 in the diagram, then confirm part number KHJ2085 before removing the hose.

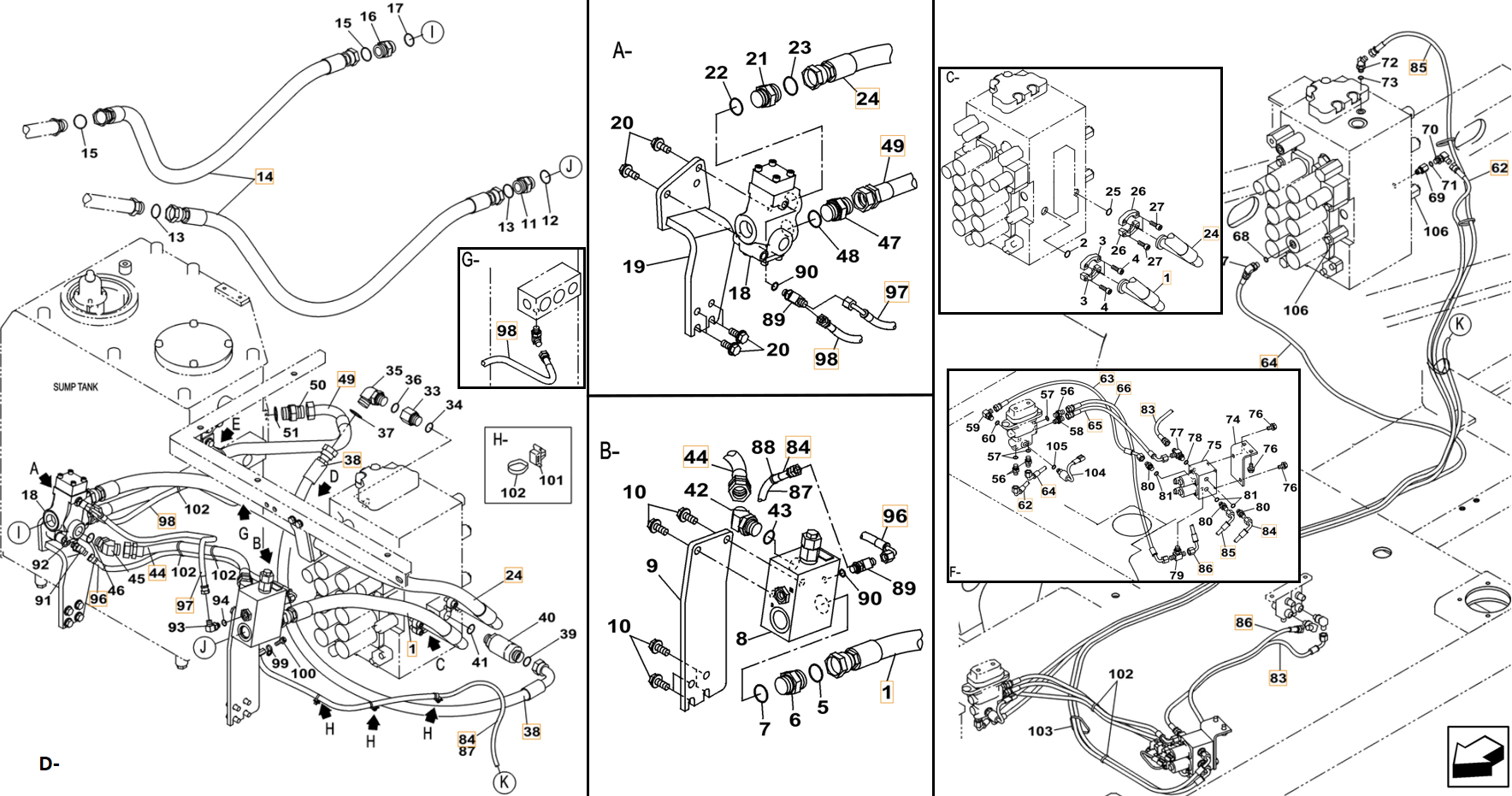

Case CX260C LC installation diagram showing hydraulic hose KHJ2085 at Pipe No. F65 — **Case CX260C LC · KHJ2085**Part KHJ2085 · Pipe No. F65Open full-size diagram

Repair specifications

Part number: KHJ2085
Diagram pipe number: F65
Installation route: 破碎器踏板~电磁阀(破碎器踏板)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 600 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
