Individual hose record
4346075 Hose Repair Specifications
Excavator · Hitachi · EX200-5 · Control Lever
Finished length2,000 mm
Locate this hose

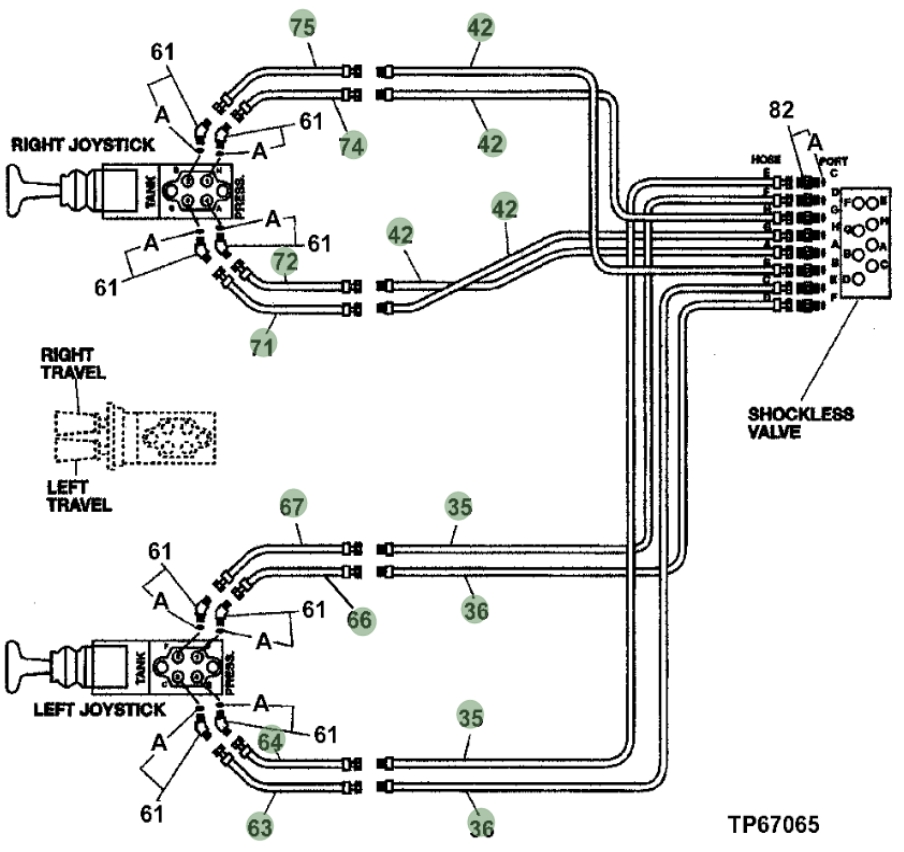

Installation diagram — Pipe No. 66
Locate Pipe No. 66 in the diagram, then confirm part number 4346075 before removing the hose.
Repair specifications
- Part number
- 4346075
- Diagram pipe number
- 66
- Installation route
- 左手柄~接头(左手柄)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 2,000 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
