Individual hose record
4446847 Hose Repair Specifications
Excavator · Hitachi · ZX670LC-5A · Control Lever
Finished length2,000 mm
Locate this hose

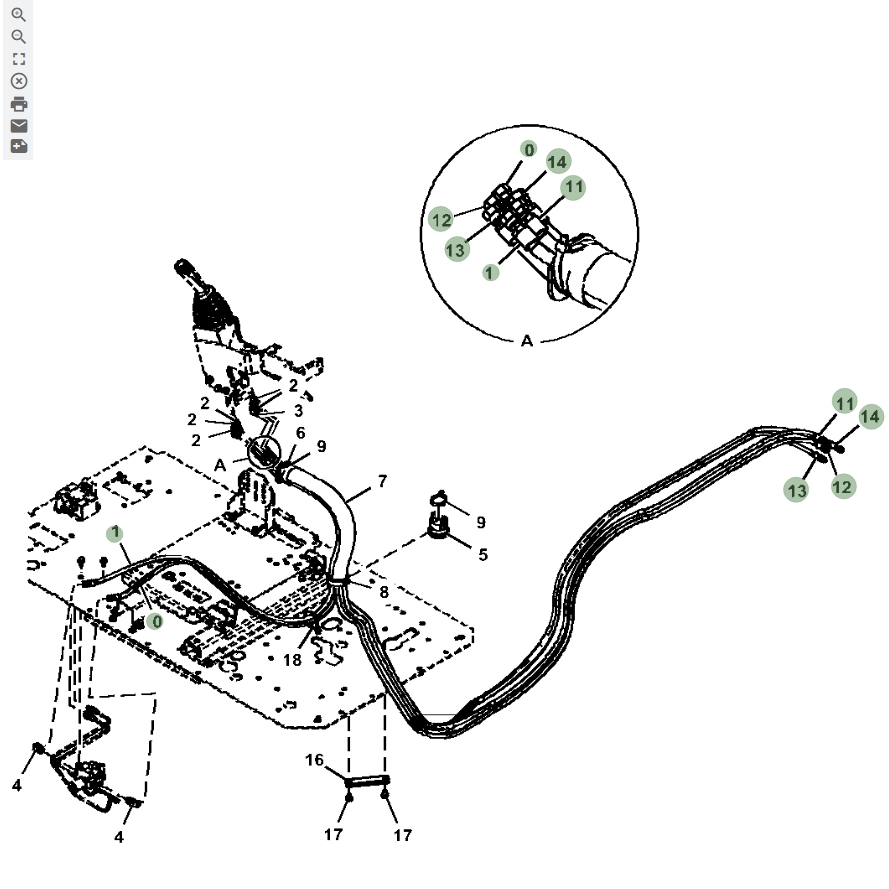

Installation diagram — Pipe No. 0
Locate Pipe No. 0 in the diagram, then confirm part number 4446847 before removing the hose.
Repair specifications
- Part number
- 4446847
- Diagram pipe number
- 0
- Installation route
- 右手柄~进回油阀
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 2,000 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
