4351173 Hose Repair Specifications

Excavator · Hitachi · EX230LC-5 · Control Valve

Finished length850 mm

Locate this hose

Installation diagram — Pipe No. 13

Locate Pipe No. 13 in the diagram, then confirm part number 4351173 before removing the hose.

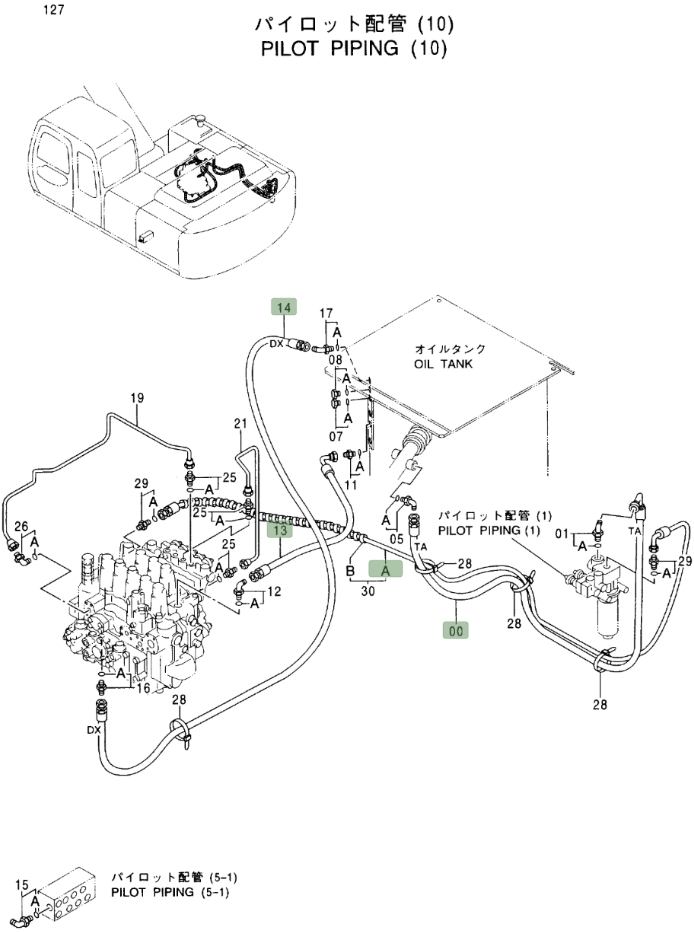

Hitachi EX230LC-5 installation diagram showing hydraulic hose 4351173 at Pipe No. 13 — Hitachi EX230LC-5Part 4351173 · Pipe No. 13Open full-size diagram

Repair specifications

Part number: 4351173
Diagram pipe number: 13
Installation route: 分配阀上~液压油箱
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 850 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1
