Individual hose record

4203085 Hose Repair Specifications

Excavator · Hitachi · EX270LC · Solenoid Valve

Finished length460 mm

Locate this hose

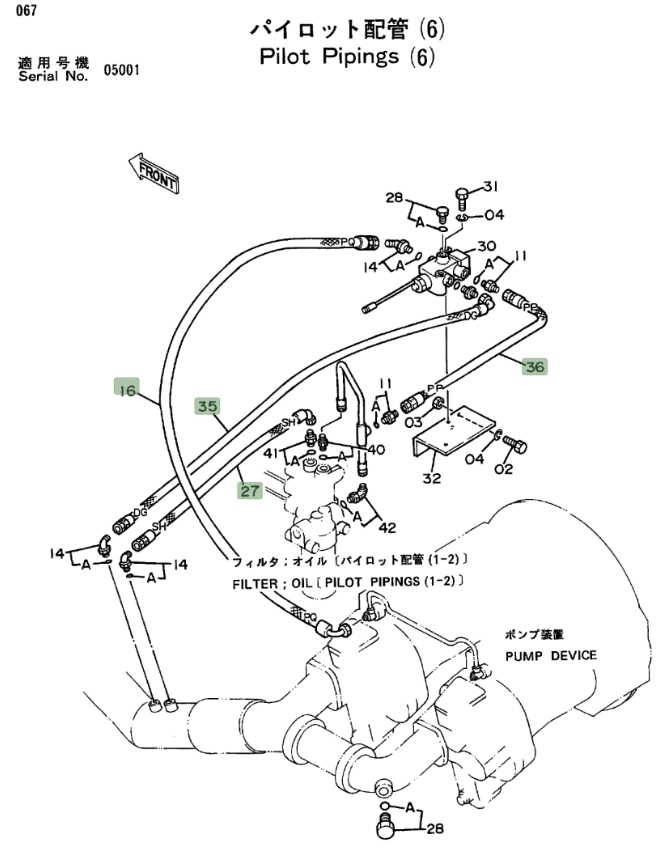

Installation diagram — Pipe No. 27

Locate Pipe No. 27 in the diagram, then confirm part number 4203085 before removing the hose.

Hitachi EX270LC installation diagram showing hydraulic hose 4203085 at Pipe No. 27 — Hitachi EX270LCPart 4203085 · Pipe No. 27Open full-size diagram

Repair specifications

Part number: 4203085
Diagram pipe number: 27
Installation route: 电磁阀~吸油铁管
Hose specification: DN6;2层纤维-4;14MPa
Finished length: 460 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 19

4203125

Installation route: 电磁阀~过渡阀块(分配阀)

Length: 550 mm
Specification: DN12;1层纤维-8;10.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 37

4218085

Installation route: 电磁阀~电磁阀(液压泵)

Length: 4,800 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
