Individual hose record

DS2093115 Hose Repair Specifications

Excavator · Doosan · DX85R-3 · Pedal

Finished length600 mm

Locate this hose

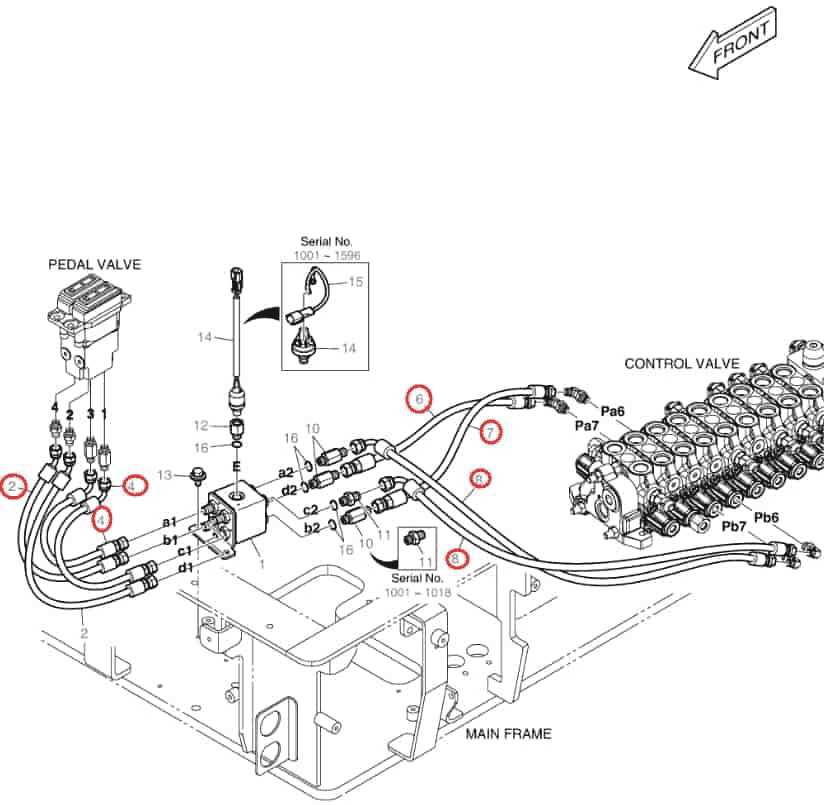

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number DS2093115 before removing the hose.

Part number: DS2093115
Diagram pipe number: 8
Installation route: 分配阀PB6口~梭阀(踏板)C2口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 600 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 2

Same system

Diagram Pipe No. 6

Installation route: 分配阀PA7口~梭阀(踏板)D2口

Length: 350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 7

Installation route: 分配阀PA6口~梭阀(踏板)B2口

Length: 400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
