Individual hose record

KHJ2309 Hose Repair Specifications

Excavator · Case · CX240C · Attachments – Breaker

Finished length550 mm

Locate this hose

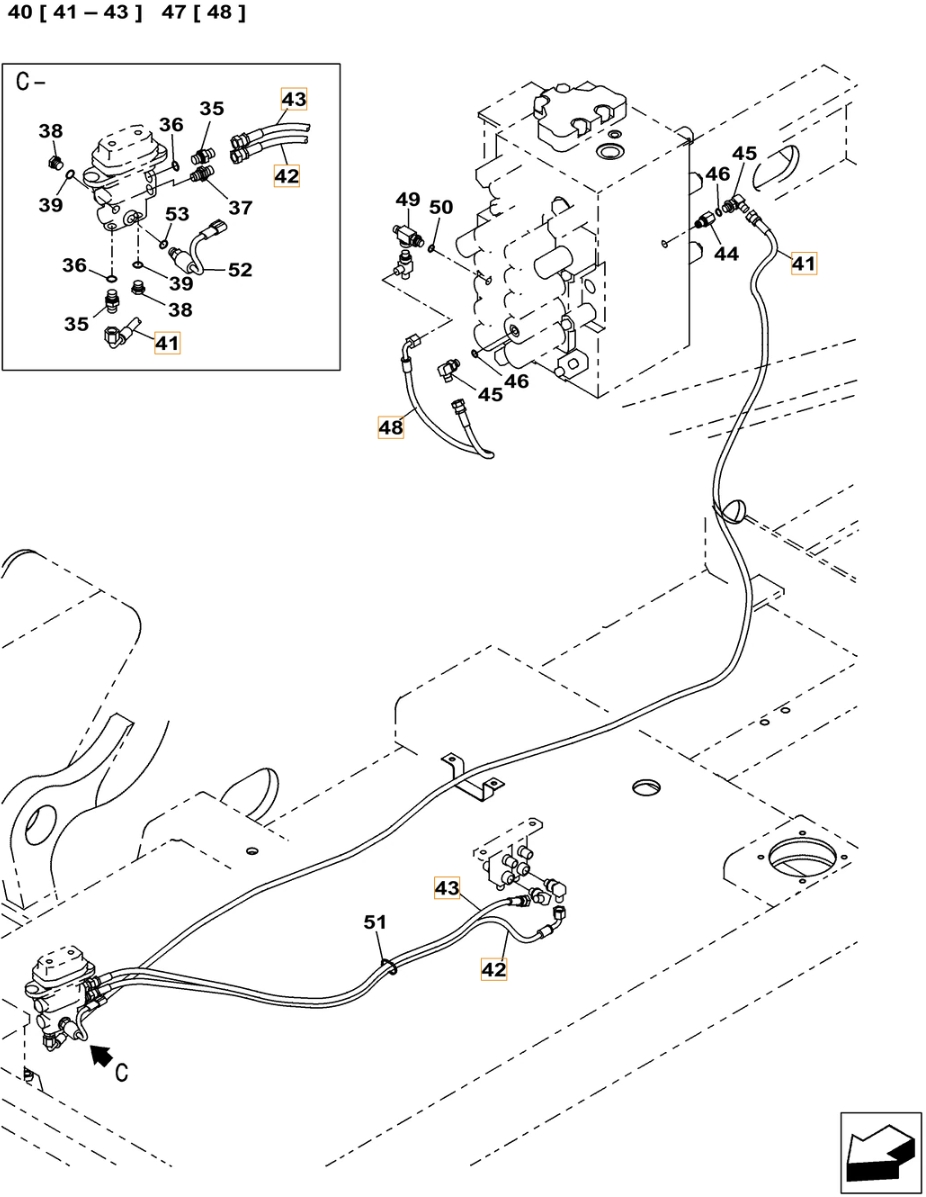

Installation diagram — Pipe No. 48

Locate Pipe No. 48 in the diagram, then confirm part number KHJ2309 before removing the hose.

Case CX240C installation diagram showing hydraulic hose KHJ2309 at Pipe No. 48 — **Case CX240C · KHJ2309**Part KHJ2309 · Pipe No. 48Open full-size diagram

Repair specifications

Part number: KHJ2309
Diagram pipe number: 48
Installation route: 分配阀前左~分配阀前右
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 550 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
