Individual hose record

KHJ18020 Hose Repair Specifications

Excavator · Case · CX260C · Attachments – Breaker

Finished length3,550 mm

Locate this hose

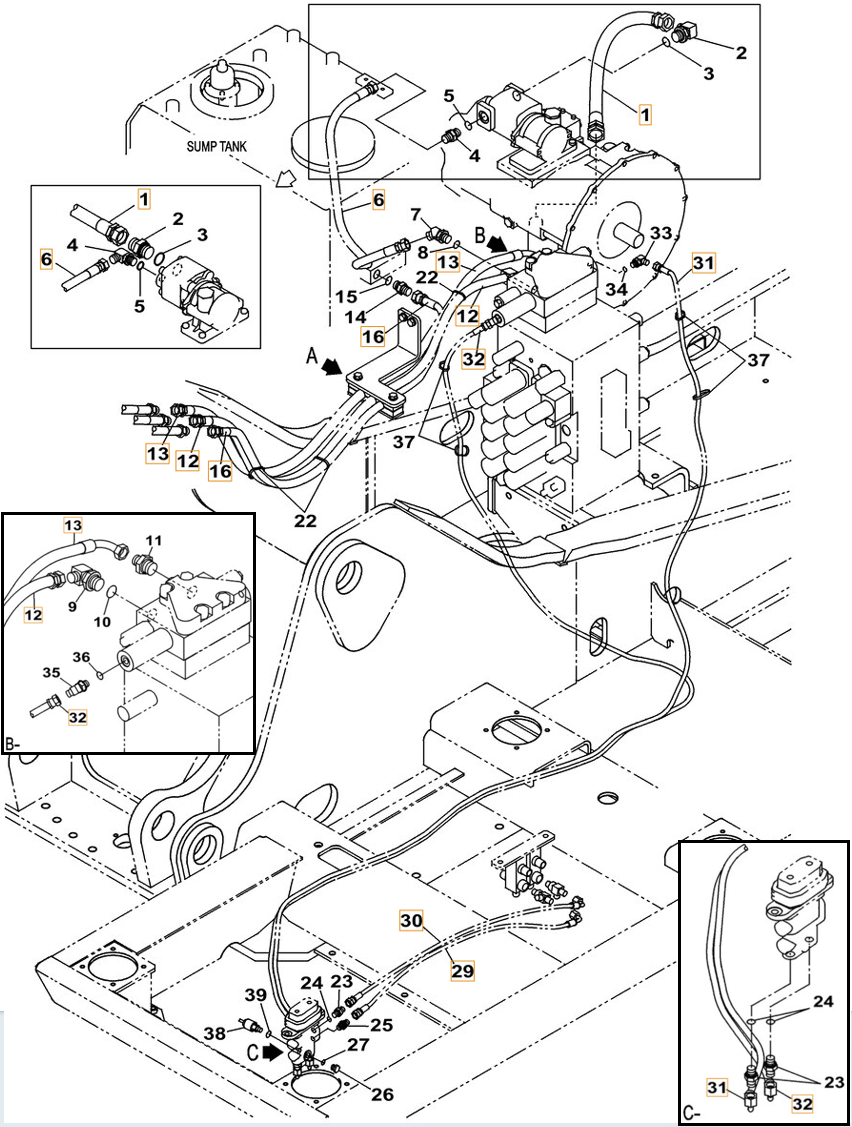

Installation diagram — Pipe No. 31

Locate Pipe No. 31 in the diagram, then confirm part number KHJ18020 before removing the hose.

Case CX260C installation diagram showing hydraulic hose KHJ18020 at Pipe No. 31 — **Case CX260C**Part KHJ18020 · Pipe No. 31Open full-size diagram

Repair specifications

Part number: KHJ18020
Diagram pipe number: 31
Installation route: 破碎器踏板~分配阀后
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,550 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. E83-F83

KHJ2036

Installation route: 进回油阀~电磁阀(破碎器踏板)

Length: 750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 9

KRV19740

Installation route: 小臂破碎器截止阀左

Length: 1,500 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 29

KHJ2089

Installation route: 破碎器踏板~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. 32

KHJ15170

Installation route: 破碎器踏板~分配阀前

Length: 3,500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 16

KRV19740

Installation route: 小臂破碎器截止阀右

Length: 1,500 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 30

KHJ2088

Installation route: 破碎器踏板~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 23

KRJ11540

Installation route: 左过渡阀块(破碎器)~右过渡阀块(破碎器)

Length: 670 mm
Specification: DN19;4SH-12;42.0MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. E85-F85

KHJ12240

Installation route: 分配阀顶~电磁阀(破碎器踏板)

Length: 3,750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
