2184-1045D190 Hose Repair Specifications

Excavator · Doosan · DX140LC · Grease Lines

Finished length1,200 mm

Locate this hose

Installation diagram — Pipe No. 7

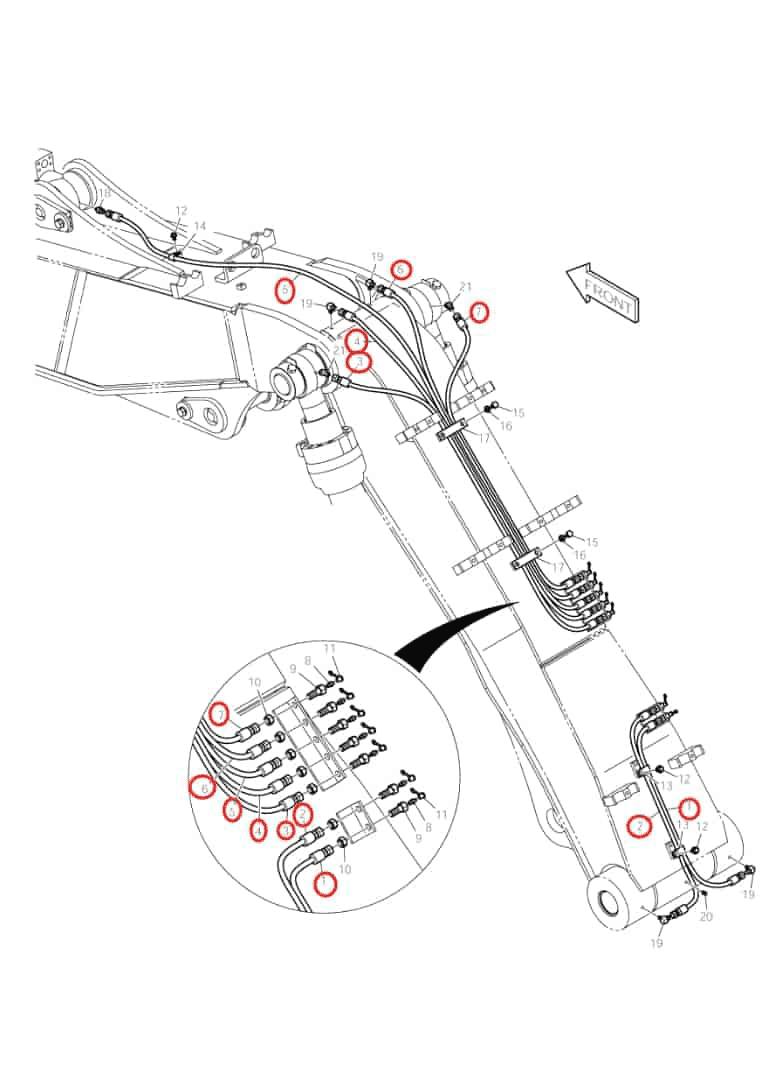

Locate Pipe No. 7 in the diagram, then confirm part number 2184-1045D190 before removing the hose.

Doosan DX140LC installation diagram showing hydraulic hose 2184-1045D190 at Pipe No. 7 — **Doosan DX140LC · 2184-1045D190**Part 2184-1045D190 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 2184-1045D190
Diagram pipe number: 7
Installation route: Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,200 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1
