730502000092 Hose Repair Specifications

Excavator · Sunward · SWE60E-3 · Control Valve

Finished length350 mm

Locate this hose

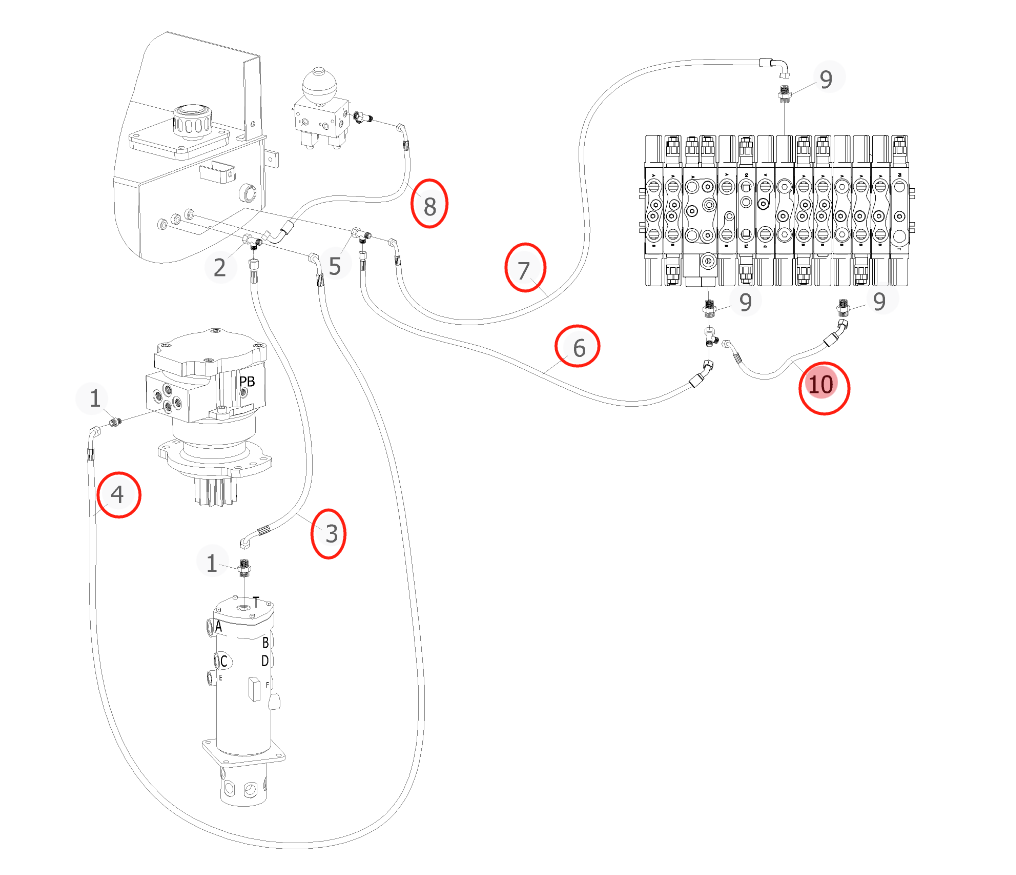

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 730502000092 before removing the hose.

Sunward SWE60E-3 installation diagram showing hydraulic hose 730502000092 at Pipe No. 10 — Sunward SWE60E-3Part 730502000092 · Pipe No. 10Open full-size diagram

Repair specifications

Part number: 730502000092
Diagram pipe number: 10
Installation route: 分配阀~液压油箱
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 350 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 5

730502001256

Installation route: 分配阀~三通(模式转换阀)

Length: 850 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 7

730502001418

Installation route: 分配阀~液压油箱

Length: 1,600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications
