Individual hose record
4203022 Hose Repair Specifications
Excavator · Hitachi · EX100 · Pedal
Finished length1,700 mm
Locate this hose

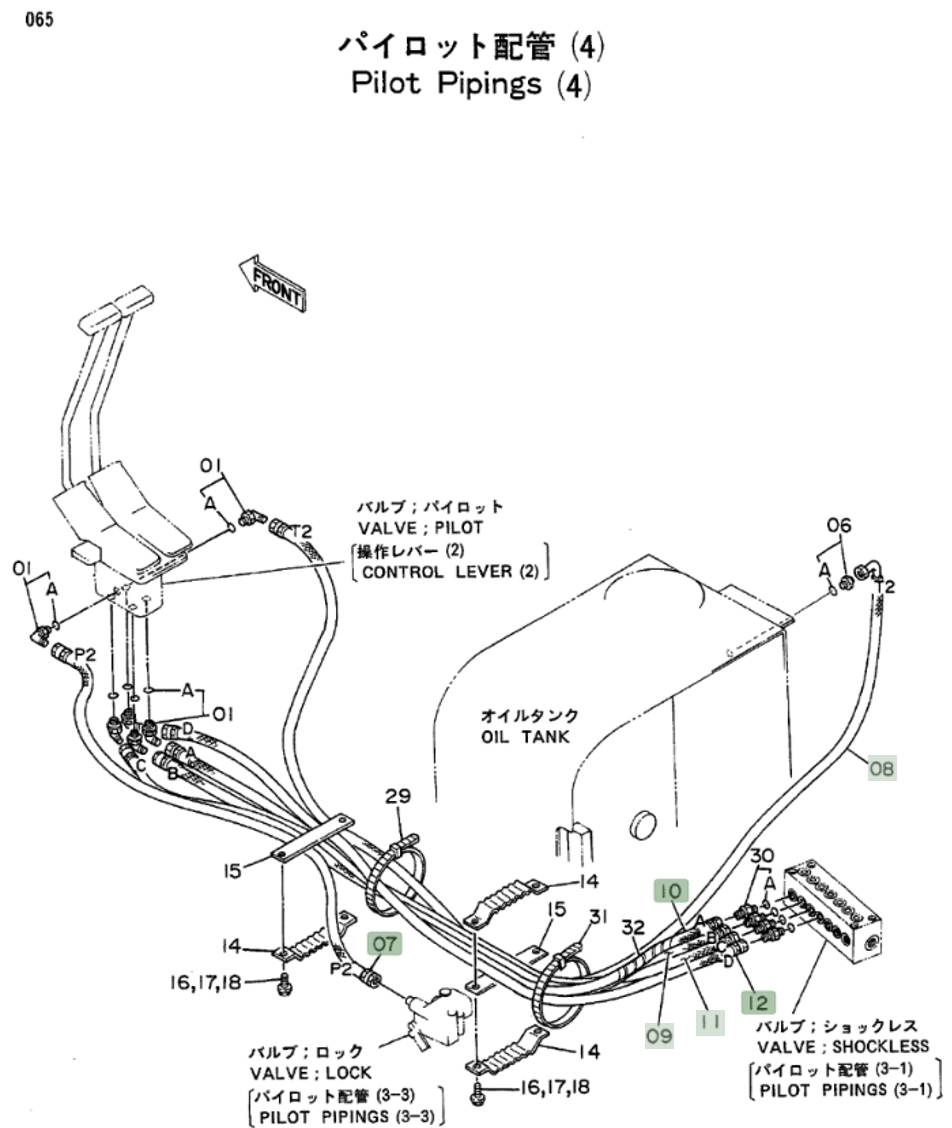

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 4203022 before removing the hose.
Repair specifications
- Part number
- 4203022
- Diagram pipe number
- 9
- Installation route
- 行走推杆~中转接头
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 1,700 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
