4285464 Hose Repair Specifications

Excavator · Hitachi · ZX120 · Boom Assembly

Finished length710 mm

Locate this hose

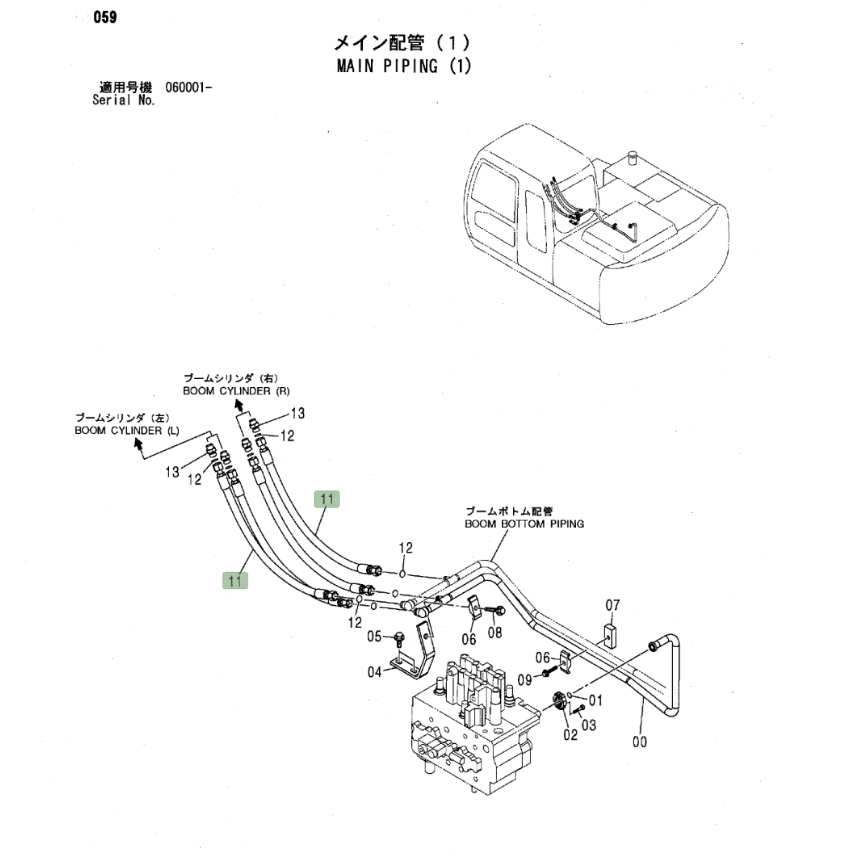

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number 4285464 before removing the hose.

Part number: 4285464
Diagram pipe number: 11
Installation route: 大臂油缸
Hose specification: DN13;4SP-08;41.5MPa
Finished length: 710 mm
Working pressure: 41.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 4

Same system

Diagram Pipe No. 13

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 850 mm
Specification: DN16;4SP-10;38MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 12

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 850 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
