Individual hose record
4290668 Hose Repair Specifications
Excavator · Hitachi · EX200LC-2 · Attachments – Lock Valve
Finished length570 mm
Locate this hose

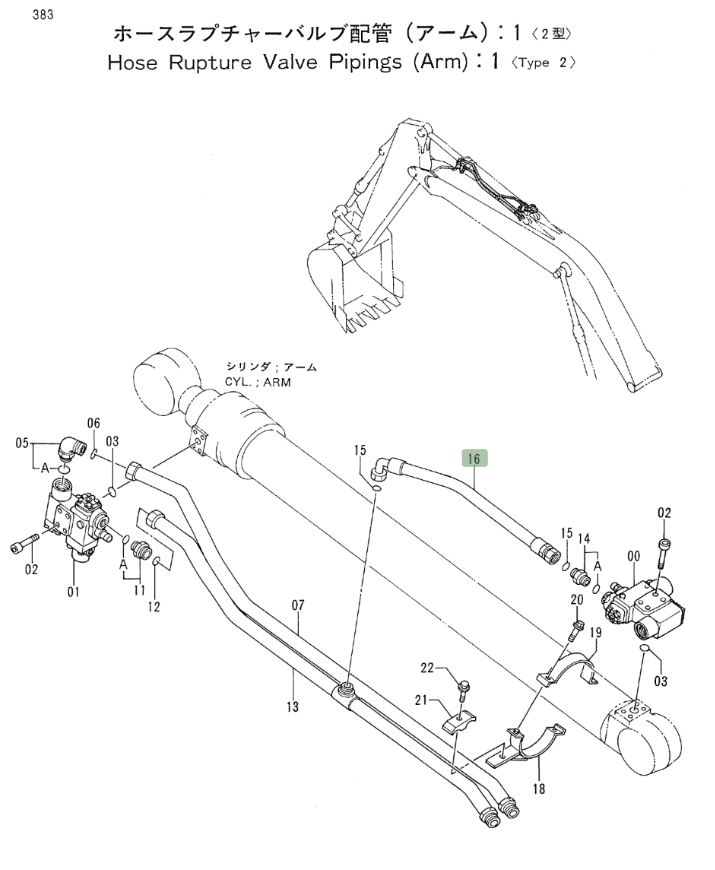

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 4290668 before removing the hose.
Repair specifications
- Part number
- 4290668
- Diagram pipe number
- 16
- Installation route
- 小臂油缸锁止阀~铁管(锁止阀)
- Hose specification
- DN25;1SN-16;7MPa
- Finished length
- 570 mm
- Working pressure
- 7 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
- Length
- 1,450 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
Diagram Pipe No. 33
4304403
Installation route: Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀
- Length
- 680 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
Diagram Pipe No. 24
4252875
Installation route: Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀
- Length
- 500 mm
- Specification
- DN6;2SN-4;68.5MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Length
- 870 mm
- Specification
- DN19;4SP-12;34.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
