Individual hose record

KHJ11480 Hose Repair Specifications

Excavator · Case · CX350D NLC · Attachments – Breaker

Finished length3,950 mm

Locate this hose

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number KHJ11480 before removing the hose.

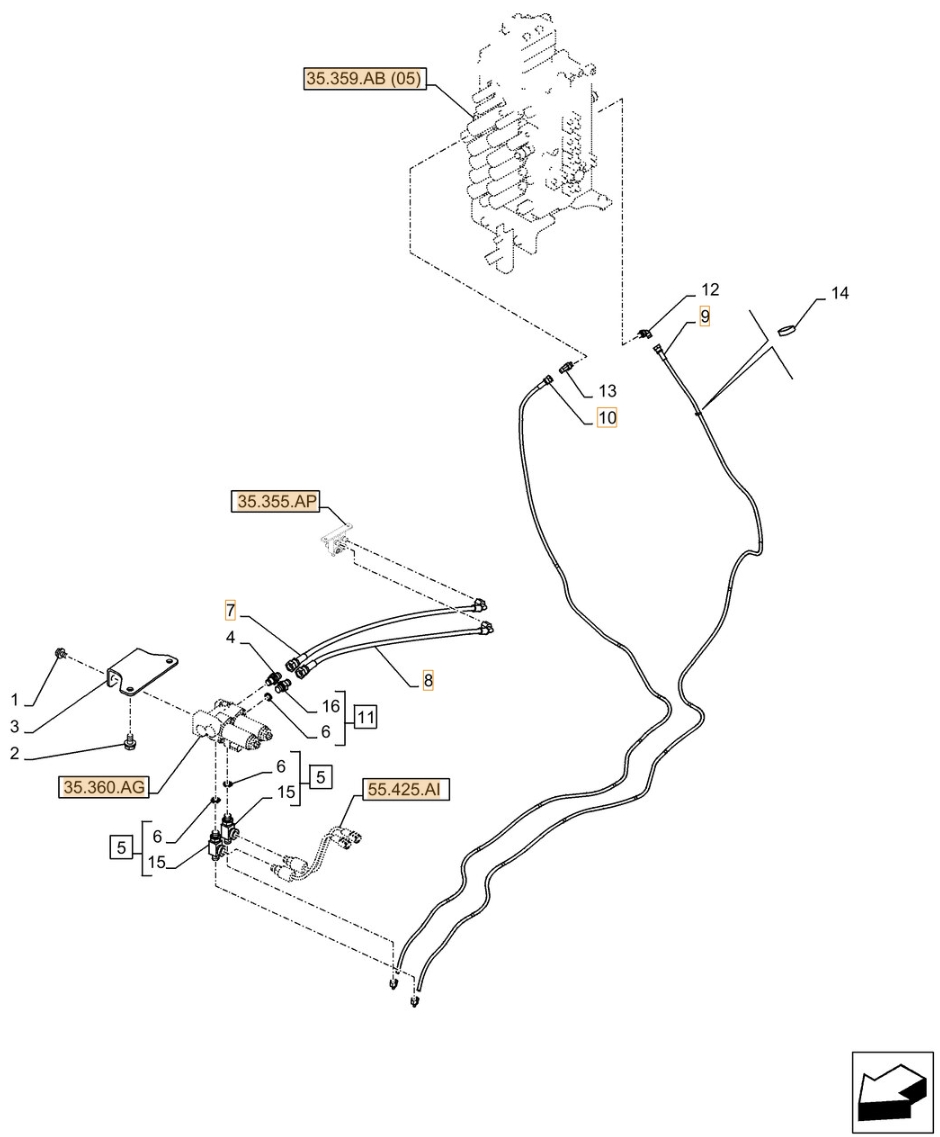

Case CX350D NLC installation diagram showing hydraulic hose KHJ11480 at Pipe No. 9 — **Case CX350D NLC**Part KHJ11480 · Pipe No. 9Open full-size diagram

Repair specifications

Part number: KHJ11480
Diagram pipe number: 9
Installation route: 分配阀后右~电磁阀(破碎器踏板)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,950 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 19

KHJ2195

Installation route: 进回油阀~电磁阀(破碎器踏板)

Length: 680 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 7

KHJ2089

Installation route: 电磁阀(破碎器踏板)~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. 18

KHJ2089

Installation route: 进回油阀~电磁阀(破碎器踏板)

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. 3

KHJ11500

Installation route: 破碎器踏板~分配阀后

Length: 3,600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 8

KHJ2088

Installation route: 电磁阀(破碎器踏板)~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 11

KHJ2163

Installation route: 破碎器踏板~电磁阀(破碎器踏板)

Length: 620 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 10

KHJ11500

Installation route: 分配阀后右~电磁阀(破碎器踏板)

Length: 3,600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 8

KHJ18020

Installation route: 破碎器踏板~分配阀后左

Length: 3,550 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
