Individual hose record
4197724 Hose Repair Specifications
Excavator · Hitachi · EX300LC-3C · Hydraulic Pump
Finished length750 mm
Locate this hose

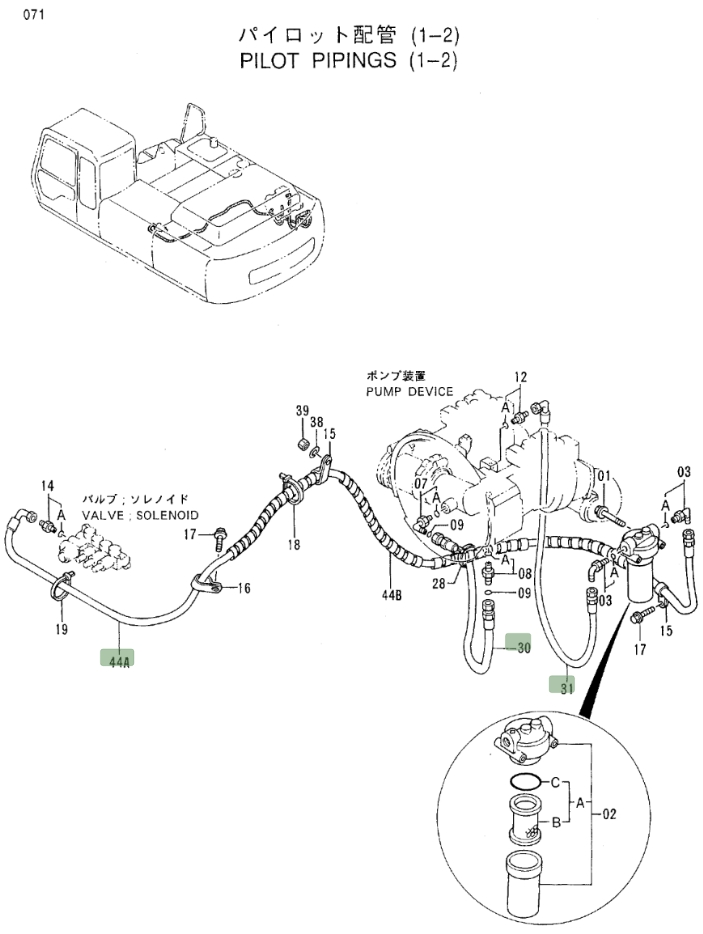

Installation diagram — Pipe No. 30
Locate Pipe No. 30 in the diagram, then confirm part number 4197724 before removing the hose.
Repair specifications
- Part number
- 4197724
- Diagram pipe number
- 30
- Installation route
- 液压泵~吸油铁管
- Hose specification
- DN19;2SN-12;21.5MPa
- Finished length
- 750 mm
- Working pressure
- 21.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
