Individual hose record
4319375 Hose Repair Specifications
Excavator · Hitachi · EX300LC-2 · Hydraulic Tank
Finished length1,850 mm
Locate this hose

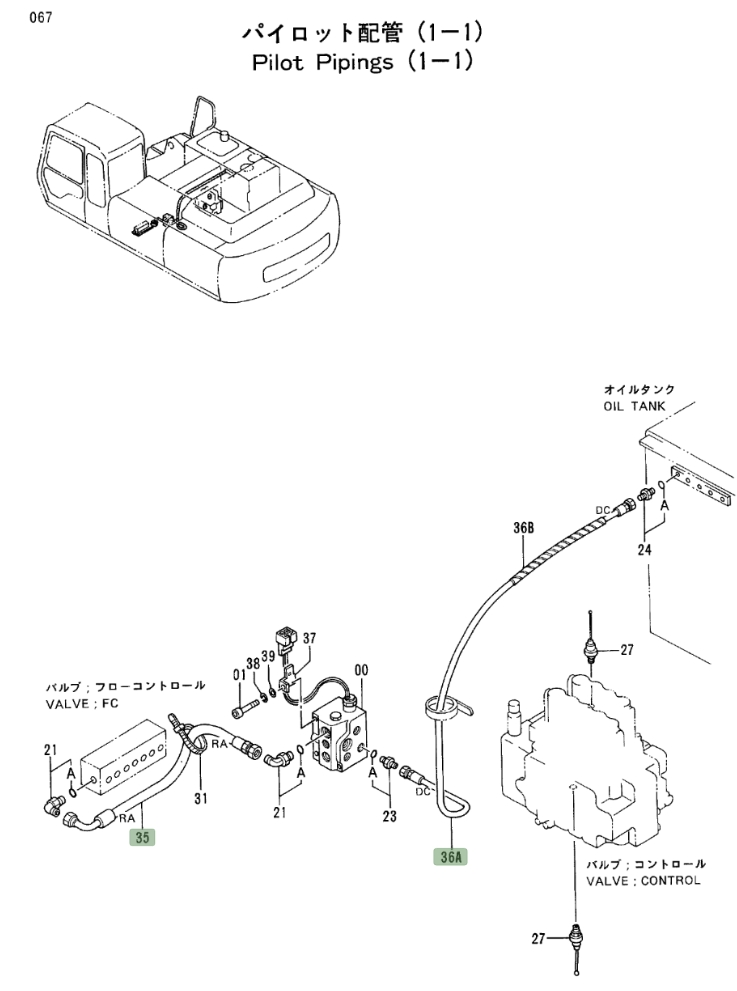

Installation diagram — Pipe No. 36A
Locate Pipe No. 36A in the diagram, then confirm part number 4319375 before removing the hose.
Repair specifications
- Part number
- 4319375
- Diagram pipe number
- 36A
- Installation route
- 液压油箱~电磁阀
- Hose specification
- DN6;2层纤维-4;14MPa
- Finished length
- 1,850 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
