Individual hose record

4281530 Hose Repair Specifications

Excavator · Hitachi · EX200LC-3 · Pedal

Finished length1,200 mm

Locate this hose

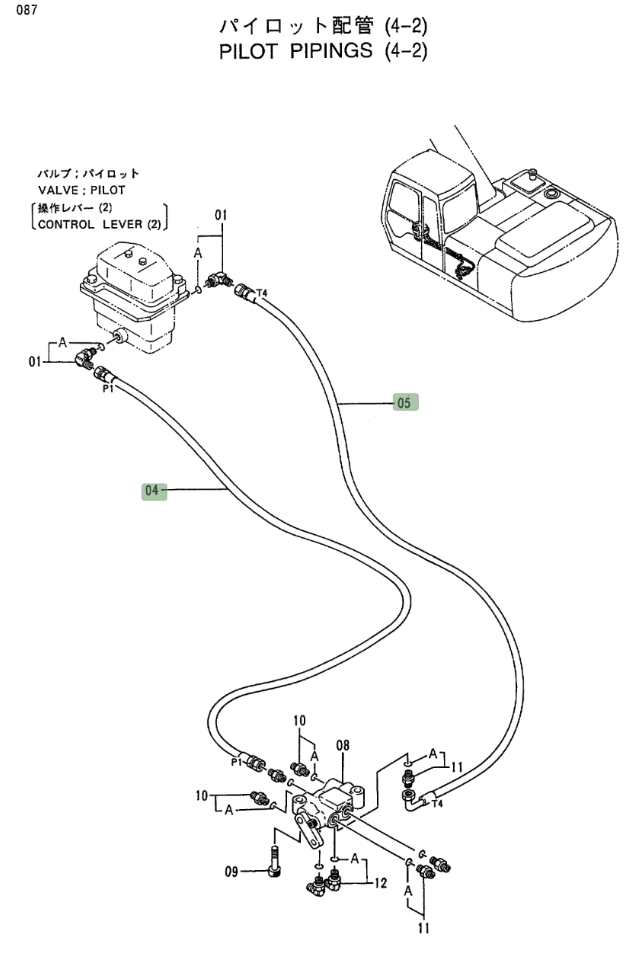

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 4281530 before removing the hose.

Hitachi EX200LC-3 installation diagram showing hydraulic hose 4281530 at Pipe No. 5 — Hitachi EX200LC-3Part 4281530 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: 4281530
Diagram pipe number: 5
Installation route: 行走踏板~进回油阀
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 1,200 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 34

4304438

Installation route: 中转接头(行走踏板)~分配阀上

Length: 1,250 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 15A

4330135

Installation route: 行走踏板~中转接头(行走踏板)

Length: 1,540 mm
Specification: DN10;1SN-6;18MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 美制内螺纹74°内锥双六角

View full repair specifications

Diagram Pipe No. 17A

4330137

Installation route: 行走踏板~中转接头(行走踏板)

Length: 1,620 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 36

4304442

Installation route: 中转接头(行走踏板)~分配阀上

Length: 1,250 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 18A

4330138

Installation route: 行走踏板~中转接头(行走踏板)

Length: 1,570 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 16A

4330136

Installation route: 行走踏板~中转接头(行走踏板)

Length: 1,570 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
