Individual hose record
4639461 Hose Repair Specifications
Excavator · Hitachi · ZX870LC-5B · Swivel Joint
Finished length3,700 mm
Locate this hose

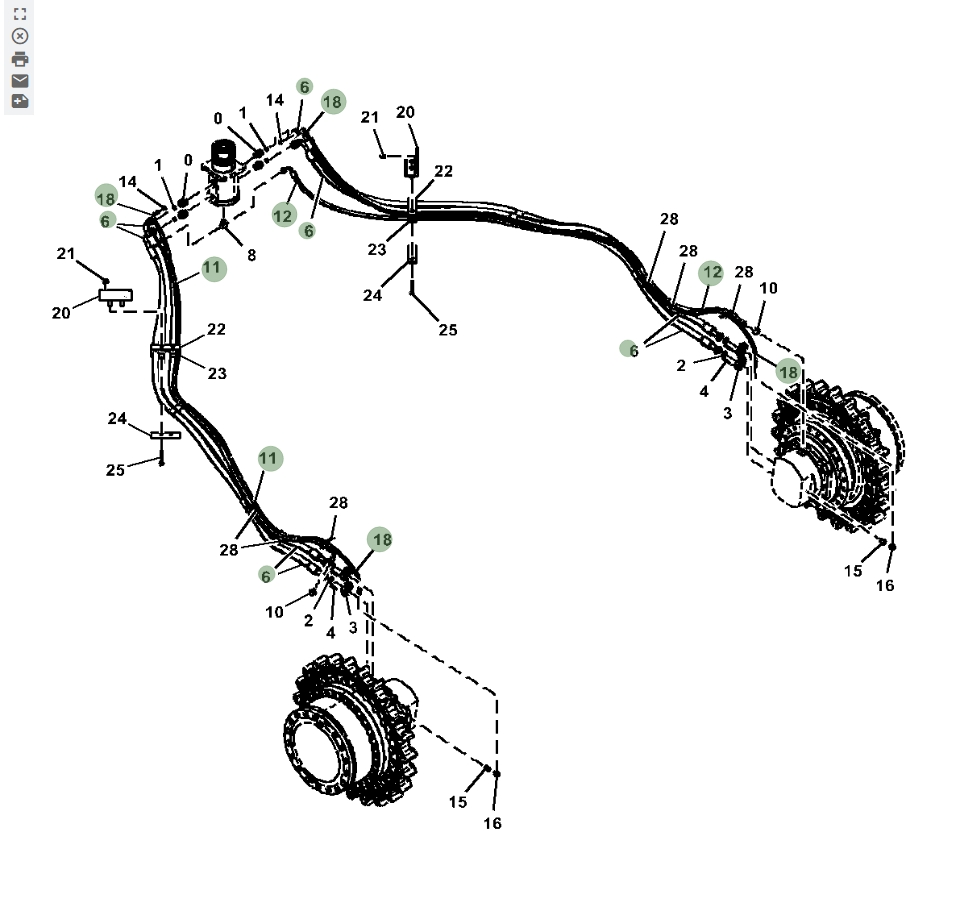

Installation diagram — Pipe No. 18
Locate Pipe No. 18 in the diagram, then confirm part number 4639461 before removing the hose.
Repair specifications
- Part number
- 4639461
- Diagram pipe number
- 18
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 3,700 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 2
