Individual hose record

4630949 Hose Repair Specifications

Excavator · Hitachi · ZX370F-LL-6N · Solenoid Valve

Finished length560 mm

Locate this hose

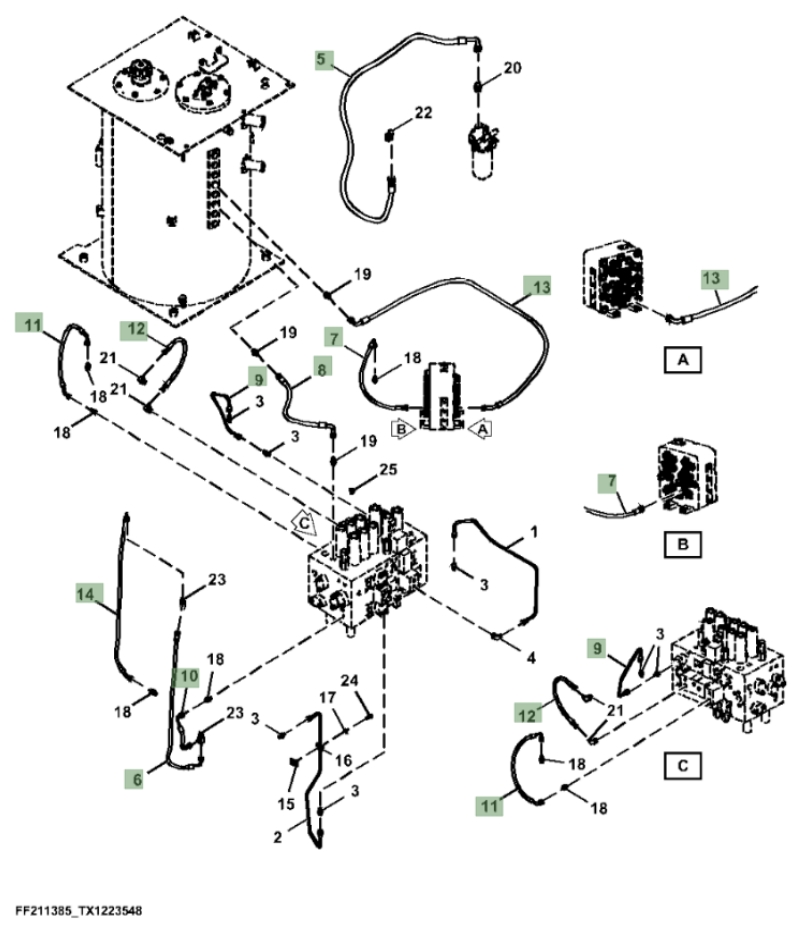

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 4630949 before removing the hose.

Hitachi ZX370F-LL-6N installation diagram showing hydraulic hose 4630949 at Pipe No. 7 — Hitachi ZX370F-LL-6N · 4630949Part 4630949 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 4630949
Diagram pipe number: 7
Installation route: 电磁阀~中转接头
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 560 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 36

4468180

Installation route: 电磁阀~电磁阀(液压泵)

Length: 1,130 mm
Specification: DN6;1SN-04;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
