Individual hose record
4642190 Hose Repair Specifications
Excavator · Hitachi · ZX240LC-3 · Hydraulic Pump
Finished length500 mm
Locate this hose

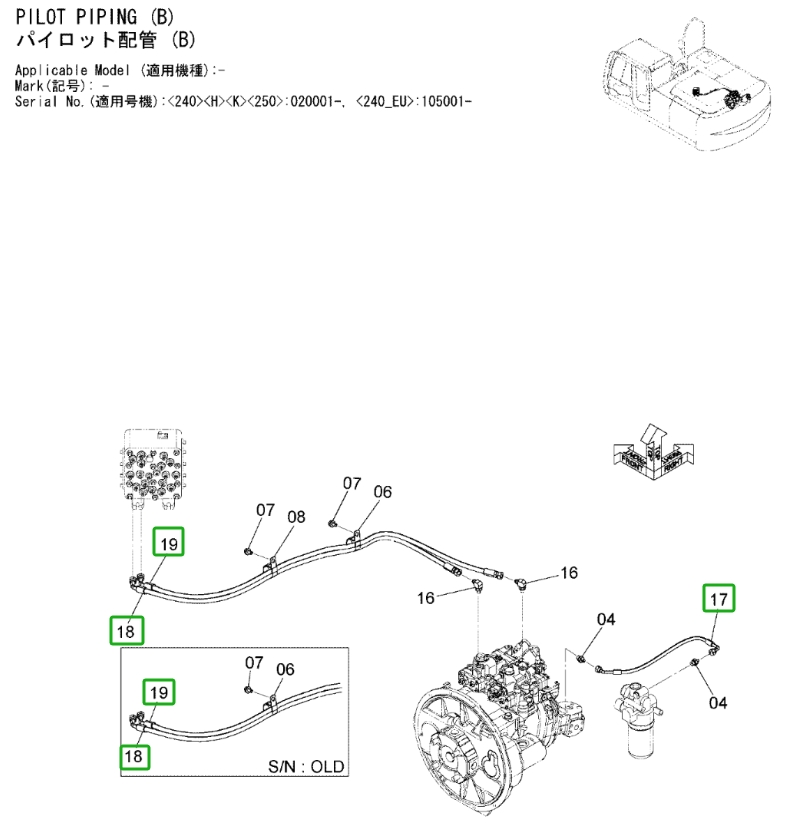

Installation diagram — Pipe No. 17
Locate Pipe No. 17 in the diagram, then confirm part number 4642190 before removing the hose.
Repair specifications
- Part number
- 4642190
- Diagram pipe number
- 17
- Installation route
- 先导泵~先导滤芯
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 500 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 45°美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
