Individual hose record
4203027 Hose Repair Specifications
Excavator · Hitachi · EX400LC · Control Lever
Finished length730 mm
Locate this hose

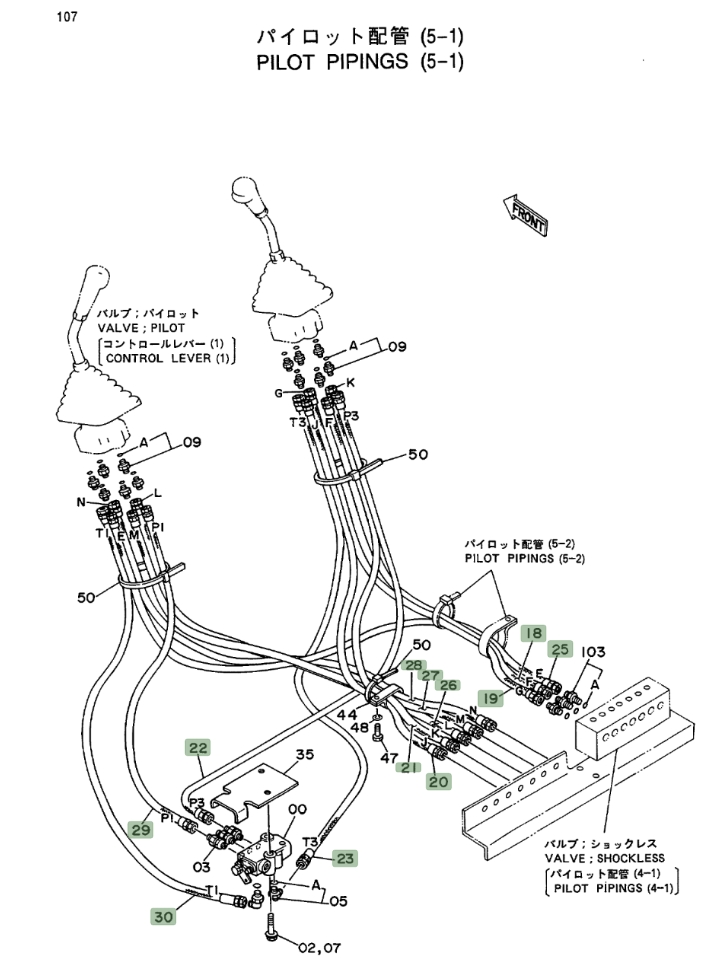

Installation diagram — Pipe No. 30
Locate Pipe No. 30 in the diagram, then confirm part number 4203027 before removing the hose.
Repair specifications
- Part number
- 4203027
- Diagram pipe number
- 30
- Installation route
- 左手柄~进回油阀
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 730 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
