Individual hose record

730501006381 Hose Repair Specifications

Excavator · Sunward · SWE500E-3 · Hydraulic Tank

Finished length1,780 mm

Locate this hose

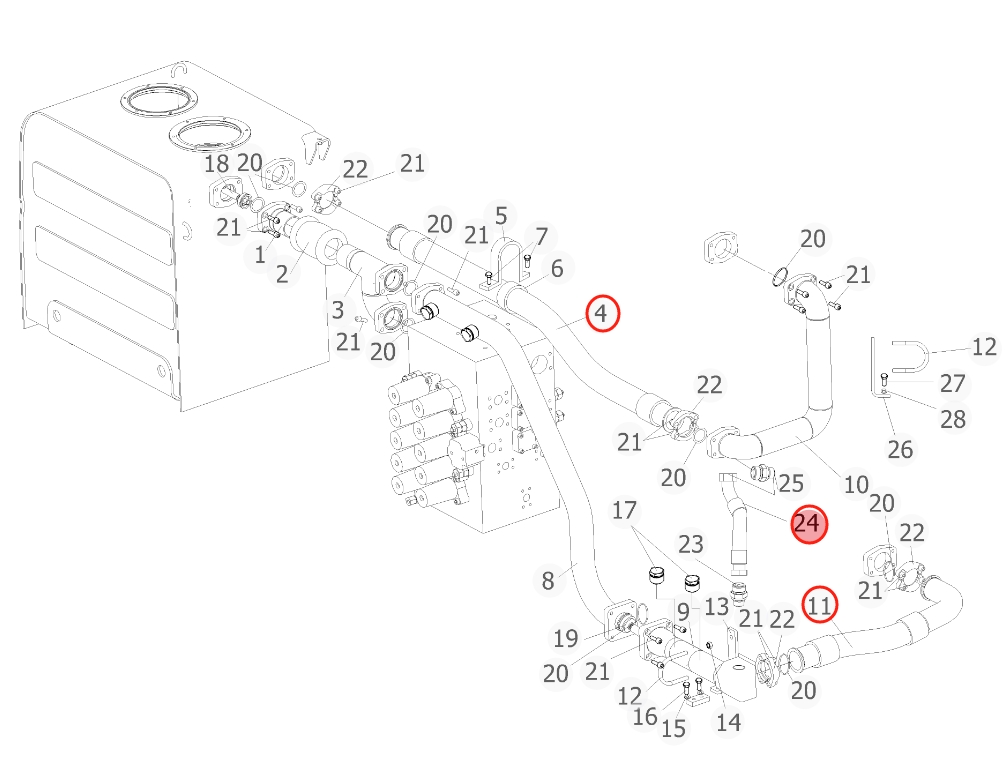

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number 730501006381 before removing the hose.

Sunward SWE500E-3 installation diagram showing hydraulic hose 730501006381 at Pipe No. 4 — Sunward SWE500E-3Part 730501006381 · Pipe No. 4Open full-size diagram

Repair specifications

Part number: 730501006381
Diagram pipe number: 4
Installation route: 液压油箱~散热器
Hose specification: DN64;1SN-40;0.4MPa
Finished length: 1,780 mm
Working pressure: 0.4 MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 24

73050200A209

Installation route: 回油铁管(液压油箱)~铁管(散热器)

Length: 625 mm
Specification: DN32;1SN-20;6.3MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 45°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 4

730501004122

Installation route: 液压油箱~散热器

Length: 1,770 mm
Specification: DN64;1SN-40;0.4MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型

View full repair specifications

Diagram Pipe No. 11

730502006629

Installation route: 回油铁管(液压油箱)~散热器下

Length: 670 mm
Specification: DN64;1SN-40;0.4MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: 90° light-series flangeOriginal Chinese: 90°法兰-轻型

View full repair specifications

Diagram Pipe No. 21

730501001428

Installation route: 液压油箱YX5~电磁阀(蓄能器)FT

Length: 1,850 mm
Specification: DN10;1SN-06;20.7MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications
