Individual hose record

KAJ3398 Hose Repair Specifications

Excavator · Case · CX130 · Control Lever

Finished length2,000 mm

Locate this hose

Installation diagram — Pipe No. 133

Locate Pipe No. 133 in the diagram, then confirm part number KAJ3398 before removing the hose.

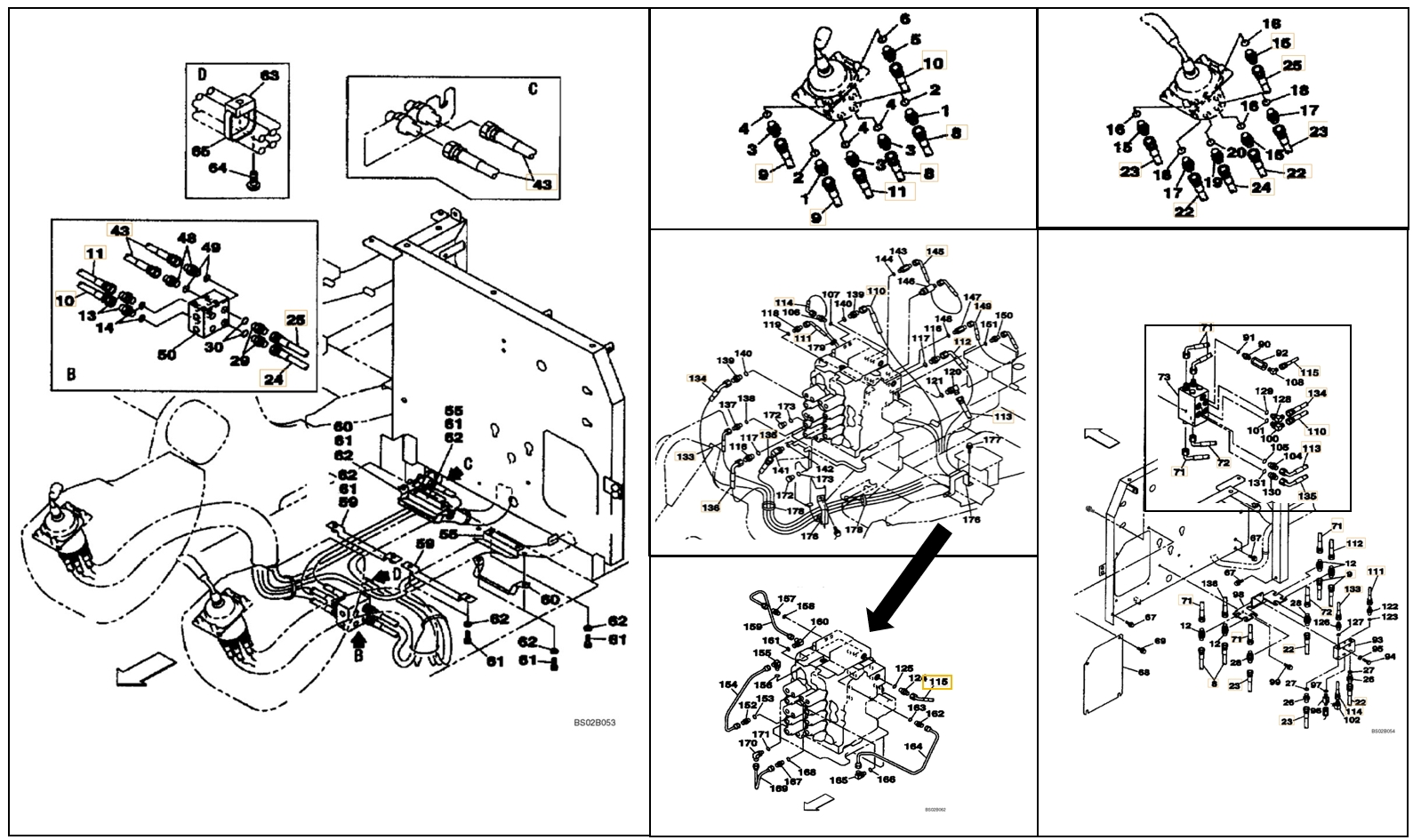

Case CX130 installation diagram showing hydraulic hose KAJ3398 at Pipe No. 133 — **Case CX130 · KAJ3398**Part KAJ3398 · Pipe No. 133Open full-size diagram

Repair specifications

Part number: KAJ3398
Diagram pipe number: 133
Installation route: 中转接头~分配阀前
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,000 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
