Individual hose record
KHJ2581 Hose Repair Specifications
Excavator · Case · CX370C LC · Pedal
Finished length3,100 mm
Locate this hose

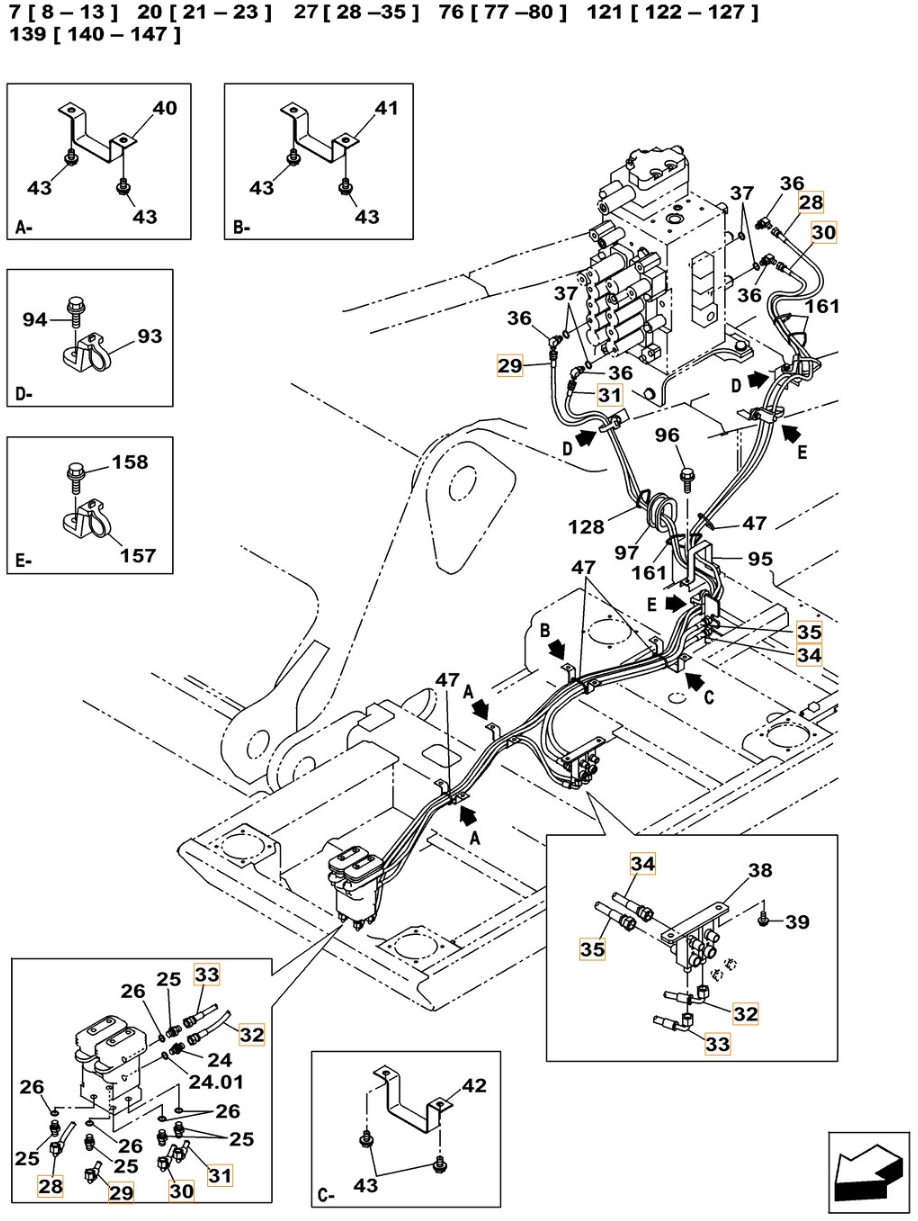

Installation diagram — Pipe No. 29
Locate Pipe No. 29 in the diagram, then confirm part number KHJ2581 before removing the hose.
Repair specifications
- Part number
- KHJ2581
- Diagram pipe number
- 29
- Installation route
- 行走踏板~分配阀前右
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 3,100 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 英制内螺纹60°内锥
- Right fitting
- 90°英制内螺纹60°内锥
- Quantity
- 1
