- Length
- 560 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
Individual hose record
4359700 Hose Repair Specifications
Excavator · Hitachi · ZX290LC-5N · Solenoid Valve
Finished length1,200 mm
Locate this hose

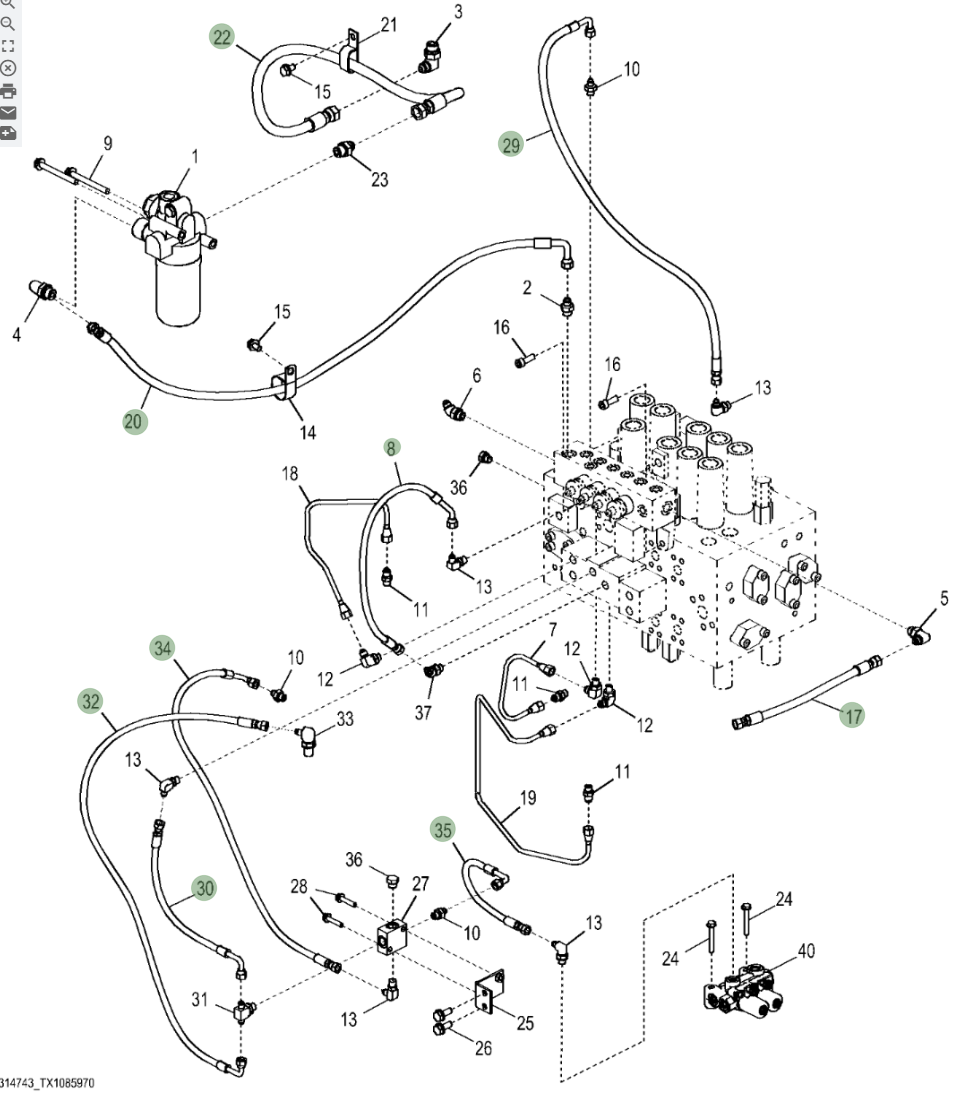

Installation diagram — Pipe No. 20
Locate Pipe No. 20 in the diagram, then confirm part number 4359700 before removing the hose.
Repair specifications
- Part number
- 4359700
- Diagram pipe number
- 20
- Installation route
- 电磁阀~先导滤芯
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,200 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 1,000 mm
- Specification
- DN6;1SN-04;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
