Individual hose record

4618606 Hose Repair Specifications

Excavator · Hitachi · ZX350F · Hydraulic Pump

Finished length520 mm

Locate this hose

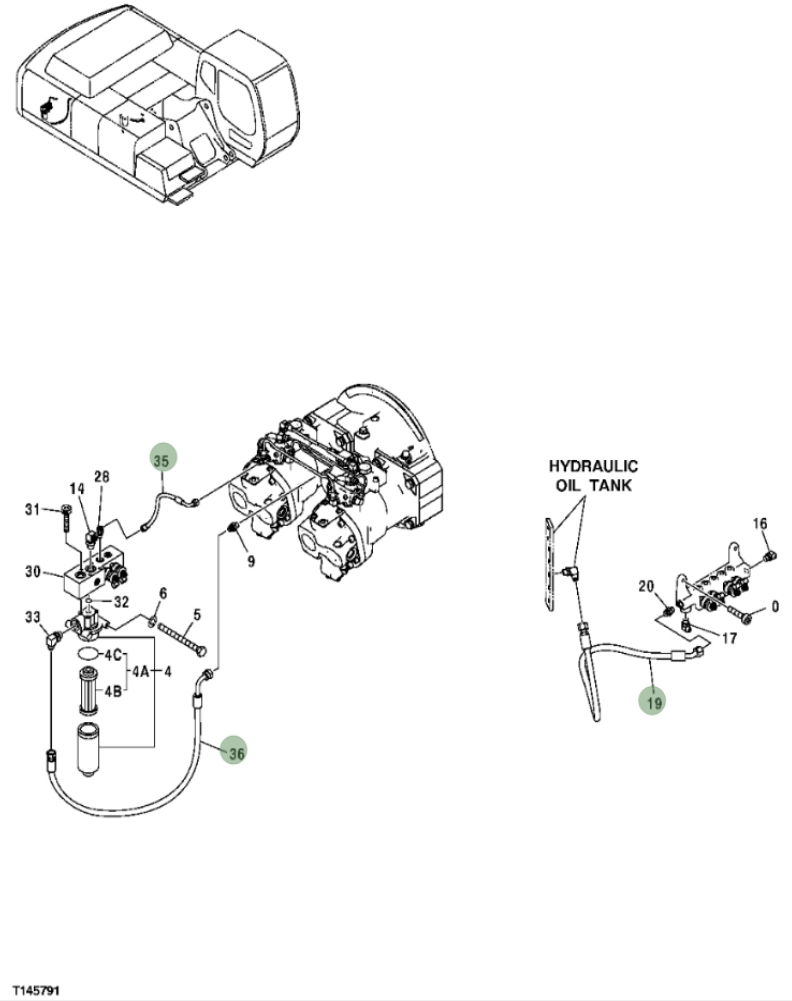

Installation diagram — Pipe No. 35

Locate Pipe No. 35 in the diagram, then confirm part number 4618606 before removing the hose.

Hitachi ZX350F installation diagram showing hydraulic hose 4618606 at Pipe No. 35 — Hitachi ZX350FPart 4618606 · Pipe No. 35Open full-size diagram

Repair specifications

Part number: 4618606
Diagram pipe number: 35
Installation route: 液压泵~电磁阀(液压泵)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 520 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 36

4413313

Installation route: 液压泵~先导滤芯

Length: 1,050 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 13

4442331

Installation route: 液压泵~电磁阀(液压泵)

Length: 500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 35

4436293

Installation route: 液压泵~电磁阀(液压泵)

Length: 500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications
