4297979 Hose Repair Specifications

Excavator · Hitachi · EX200LC-2 · Attachments – Breaker

Finished length1,050 mm

Locate this hose

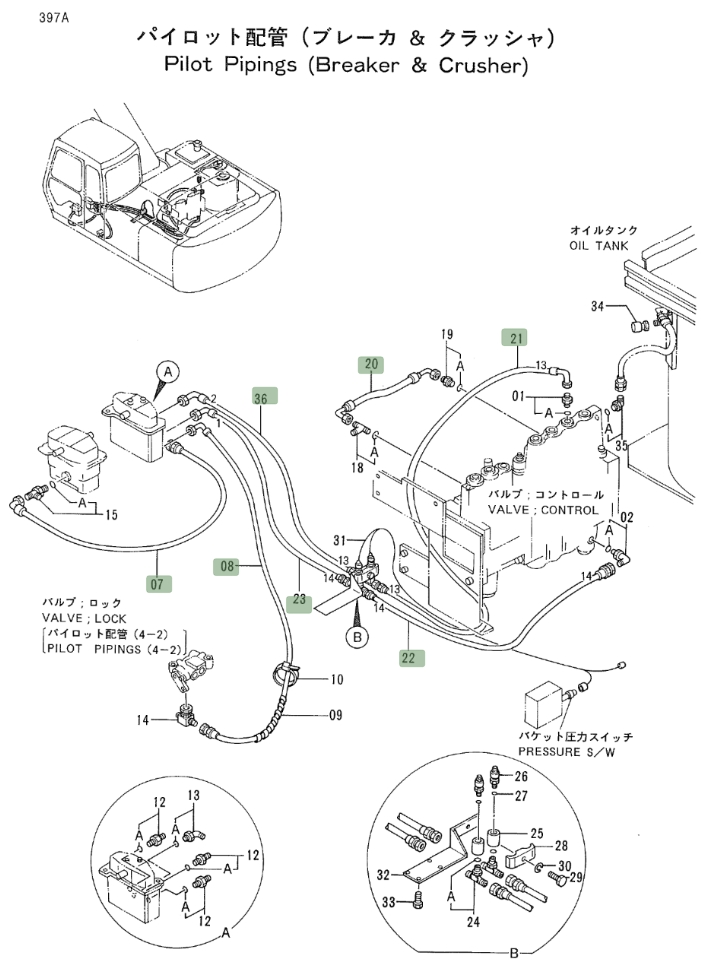

Installation diagram — Pipe No. 36

Locate Pipe No. 36 in the diagram, then confirm part number 4297979 before removing the hose.

Hitachi EX200LC-2 installation diagram showing hydraulic hose 4297979 at Pipe No. 36 — Hitachi EX200LC-2Part 4297979 · Pipe No. 36Open full-size diagram

Repair specifications

Part number: 4297979
Diagram pipe number: 36
Installation route: 破碎器踏板~接线板(踏板)
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 1,050 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 23

4297978

Installation route: 破碎器踏板~接线板(踏板)

Length: 1,000 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 7

4218001

Installation route: 破碎器踏板~行走踏板

Length: 600 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 8

4210340

Installation route: 破碎器踏板~进回油阀

Length: 1,350 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 13

4275675

Installation route: 大臂(破碎器)~铁管(破碎器)

Length: 1,100 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 11

4281167

Installation route: 小臂破碎器截止阀

Length: 1,750 mm
Specification: DN25;4SP-16;34.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications
