Individual hose record

4469297 Hose Repair Specifications

Excavator · Hitachi · ZX220W-3 · Attachments – Breaker

Finished length810 mm

Locate this hose

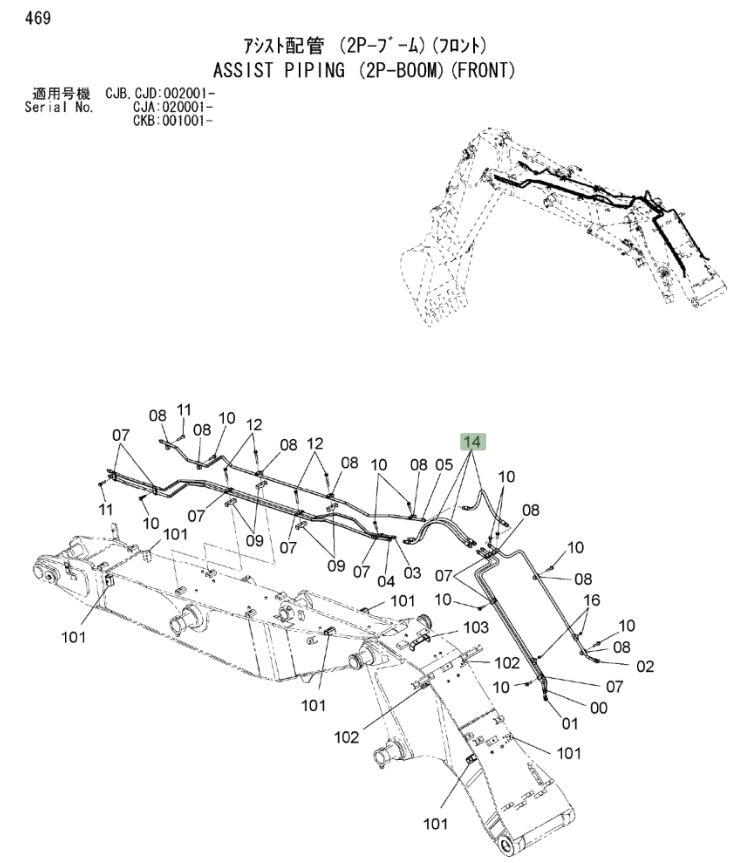

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number 4469297 before removing the hose.

Hitachi ZX220W-3 installation diagram showing hydraulic hose 4469297 at Pipe No. 14 — **Hitachi ZX220W-3**Part 4469297 · Pipe No. 14Open full-size diagram

Repair specifications

Part number: 4469297
Diagram pipe number: 14
Installation route: 大臂(前段)~大臂(后段)
Hose specification: DN10;2SN-6;34.5MPa
Finished length: 810 mm
Working pressure: 34.5 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 3

Same system

Related Hoses

Diagram Pipe No. 6

9266932

Installation route: 大臂(破碎器)~过渡阀块(破碎器)

Length: 1,450 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 6A

4286816

Installation route: 大臂(破碎器)~过渡阀块(破碎器)

Length: 1,450 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 0

4649213

Installation route: 大臂(前段)~大臂(后段)

Length: 1,300 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 43

4652254

Installation route: 分配阀上~电磁阀(隔板)

Length: 3,650 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 32

4673668

Installation route: 电磁阀~止动阀(破碎器)

Length: 1,950 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 18

4308148

Installation route: 过渡阀块(破碎器)~分配阀左

Length: 900 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 27

4673271

Installation route: 液压油箱~电磁阀(踏板)

Length: 2,900 mm
Specification: DN10;1SN-6;18MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 15

4644709

Installation route: 小臂破碎器截止阀

Length: 1,350 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications
