Individual hose record

166180A1 Hose Repair Specifications

Excavator · Case · CX210 · Control Lever

Finished length2,850 mm

Locate this hose

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number 166180A1 before removing the hose.

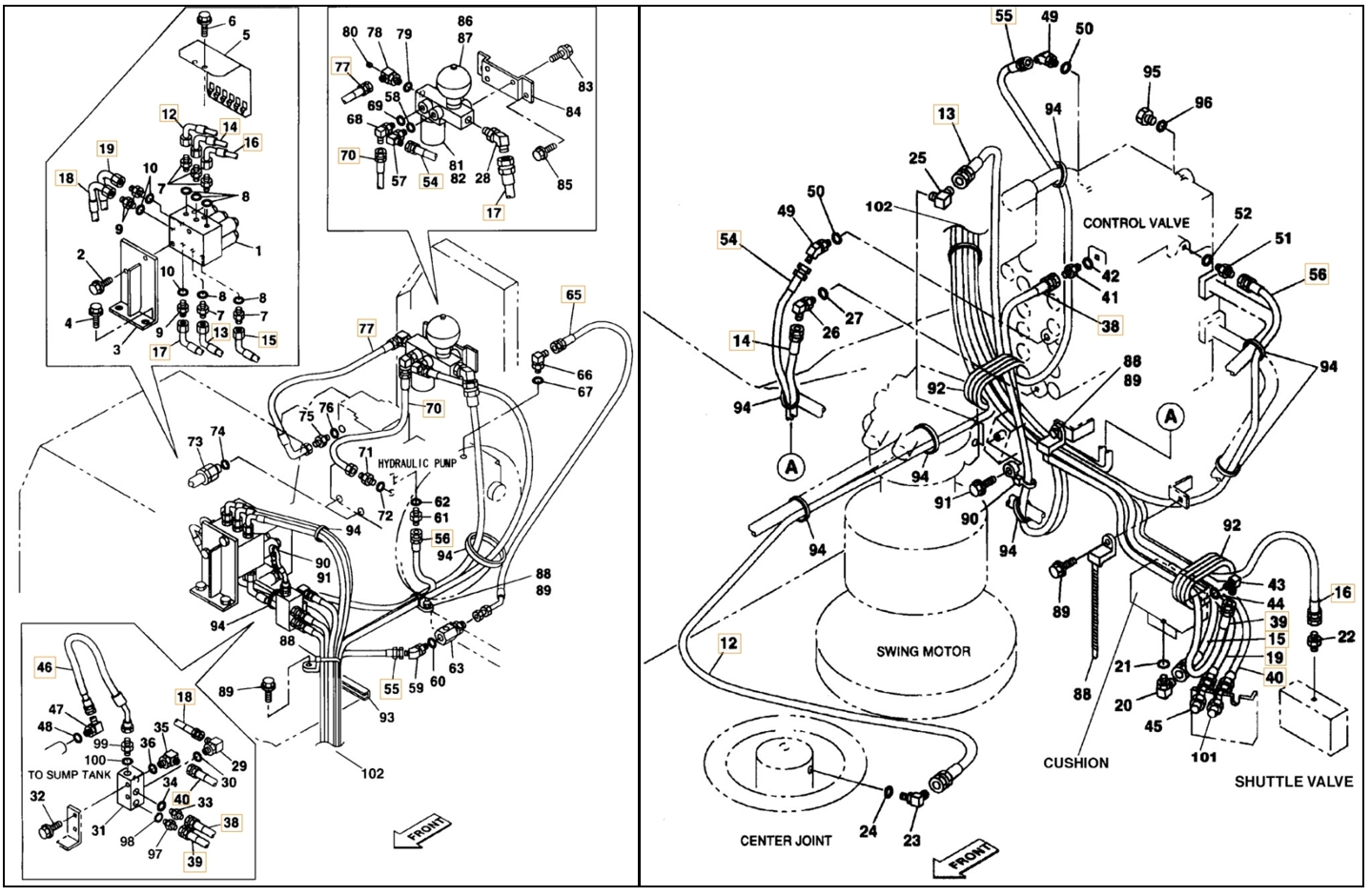

Case CX210 installation diagram showing hydraulic hose 166180A1 at Pipe No. 16 — **Case CX210 · 166180A1**Part 166180A1 · Pipe No. 16Open full-size diagram

Repair specifications

Part number: 166180A1
Diagram pipe number: 16
Installation route: 中转接头~电磁阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,850 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
