Individual hose record

4342978 Hose Repair Specifications

Excavator · Hitachi · EX200-5 · Pedal

Finished length3,350 mm

Locate this hose

Installation diagram — Pipe No. 79

Locate Pipe No. 79 in the diagram, then confirm part number 4342978 before removing the hose.

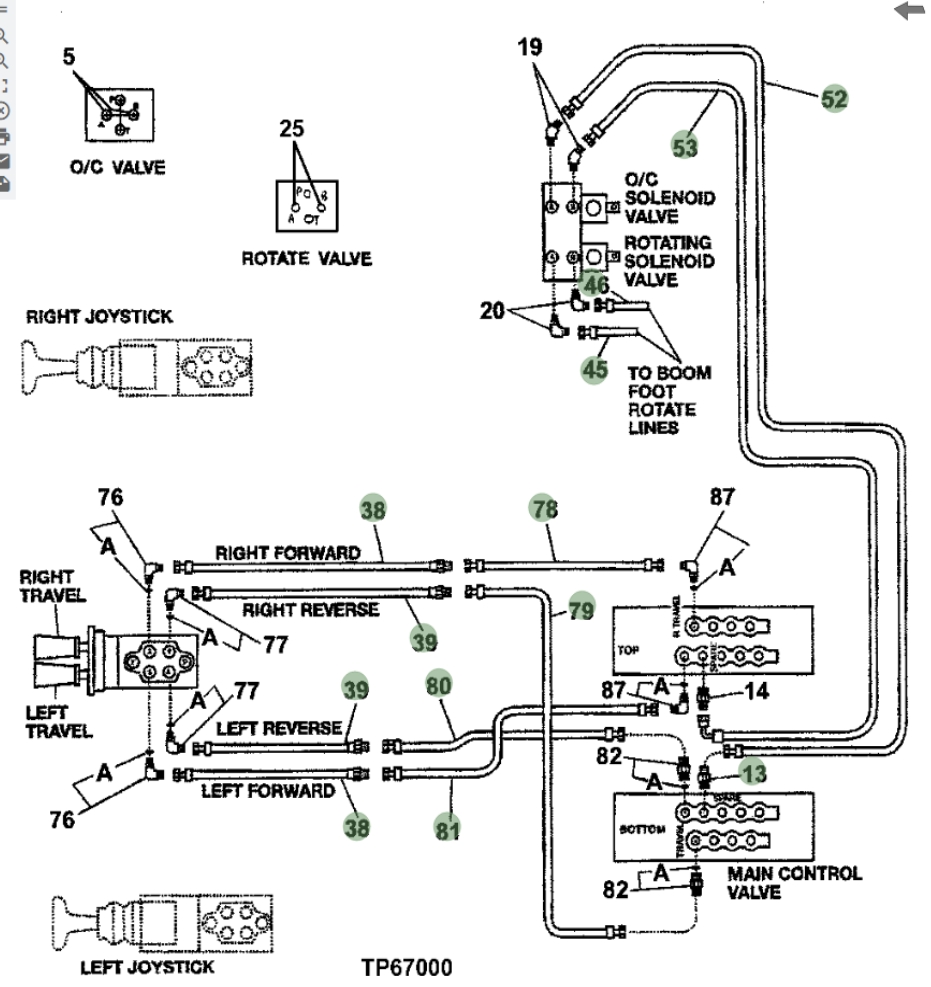

Hitachi EX200-5 installation diagram showing hydraulic hose 4342978 at Pipe No. 79 — Hitachi EX200-5Part 4342978 · Pipe No. 79Open full-size diagram

Repair specifications

Part number: 4342978
Diagram pipe number: 79
Installation route: 行走踏板~分配阀下右
Hose specification: DN10;1SN-6;7Mpa
Finished length: 3,350 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 40

4346008

Installation route: 行走踏板~进回油阀

Length: 1,100 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 80

4386670

Installation route: 行走踏板~分配阀下左

Length: 3,200 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 78

4391124

Installation route: 行走踏板~分配阀上右

Length: 3,650 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 50

4360873

Installation route: 行走踏板~进回油阀

Length: 950 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 81

4391123

Installation route: 行走踏板~分配阀上左

Length: 3,550 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
