Individual hose record
4713488 Hose Repair Specifications
Excavator · Hitachi · ZX870LC-5B · Control Lever
Finished length1,180 mm
Locate this hose

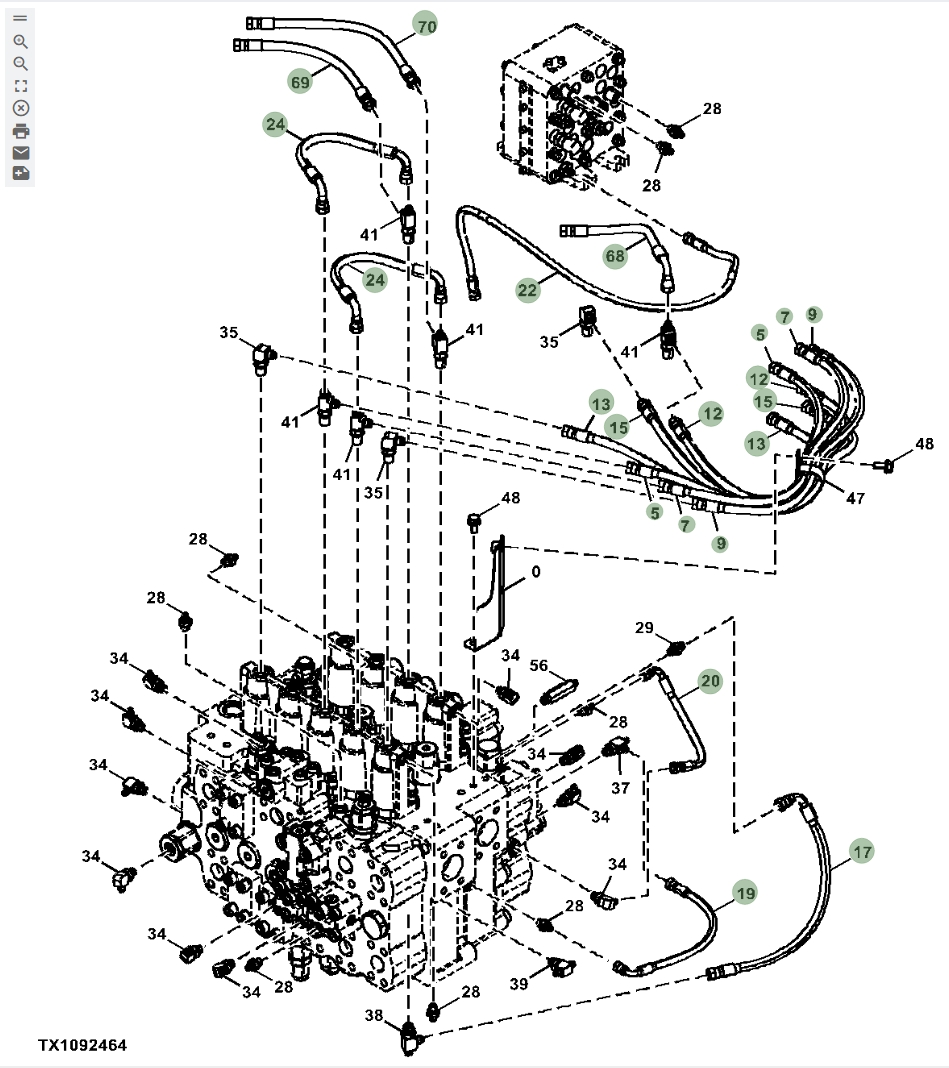

Installation diagram — Pipe No. 22
Locate Pipe No. 22 in the diagram, then confirm part number 4713488 before removing the hose.
Repair specifications
- Part number
- 4713488
- Diagram pipe number
- 22
- Installation route
- 中转接头~分配阀前
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,180 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
